Husqvarna TR314C - Mainframe - Left Side

Husqvarna TR314C - Mainframe - Left Side
Husqvarna TR314C - Mainframe - Left Side

Description

Husqvarna TR314C

Model Year - -

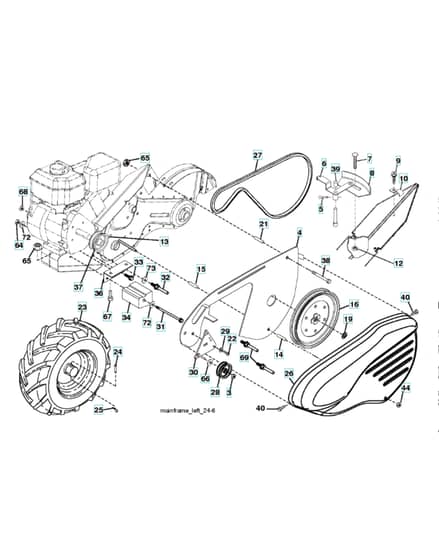

Mainframe - Left Side - Parts Diagram

Ref. Img. Part No. Details
  4 Shieldinner Belt Guard Rt
Shieldinner Belt Guard Rt
HV583 87 77-01 Out of stock
Shieldinner Belt Guard Rt
£25.09 £20.91

  5 Pin
Pin
HV532 16 43-29 Out of stock
Pin
£3.37 £2.81

  6 Lever
Lever
HV532 11 01-11 Out of stock
Lever
£9.98 £8.32

  8 Indicator Panel
Indicator Panel
HV581 84 50-01 Out of stock
Indicator Panel
£5.93 £4.94

  10 Clip
Clip
HV532 44 60-45 Out of stock
Clip
£0.80 £0.67

  13 Screw
Screw
HV823 23 05-06 Out of stock
Screw
£1.36 £1.13

  14 Spacer
Spacer
HV532 15 61-17 Out of stock
Spacer
£5.45 £4.54

  15 Spacer
Spacer
HV585 83 12-01 Out of stock
Spacer
£2.36 £1.97

  16 Pulley
Pulley
HV532 14 51-02 Out of stock
Pulley
£109.57 £91.31

  19 Clip
Clip
HV812 00 00-28 Out of stock
Clip
£0.54 £0.45

  21 Spacer
Spacer
HV585 83 08-01 Out of stock
Spacer
£4.24 £3.53

  22 Bolt
Bolt
HV874 77 05-08 Out of stock
Bolt
£2.72 £2.27

  26 Belt Guard
Belt Guard
HV532 44 04-38 Out of stock
Belt Guard
£70.43 £58.69

  27 Belt
Belt
HV591 37 24-01 Out of stock
Belt
£24.65 £20.54

  28 Pulley
Pulley
HV532 10 46-79 Out of stock
Pulley
£13.45 £11.21

  29 Retainer Ring
Retainer Ring
HV812 00 00-32 Out of stock
Retainer Ring
£0.59 £0.49

  30 Bracket
Bracket
HV584 28 92-01 Out of stock
Bracket
£12.85 £10.71

  31 Screw
Screw
HV581 74 72-01 Out of stock
Screw
£2.78 £2.32

  33 Bolt
Bolt
HV874 76 06-16 Out of stock
Bolt
£2.08 £1.73

  34 Weight
Weight
HV581 01 06-01 Out of stock
Weight
£98.70 £82.25

  36 Bracketlh
Bracketlh
HV581 86 48-01 Out of stock
Bracketlh
£4.76 £3.97

  37 Pulley
Pulley
HV582 03 20-01 Out of stock
Pulley
£27.20 £22.67

  39 Cap
Cap
HV532 14 00-62 Out of stock
Cap
£5.77 £4.81

  40 Screw
Screw
HV532 17 04-88 Out of stock
Screw
£1.84 £1.53

  44 Lock Nut
Lock Nut
HV596 04 05-01 Out of stock
Lock Nut
£2.02 £1.68

  64 Nut
Nut
HV596 32 26-01 Out of stock
Nut
£3.14 £2.62

  68 Nut
Nut
HV873 51 06-00 Out of stock
Nut
£2.58 £2.15


Description

Husqvarna TR314C

Model Year - -

Mainframe - Left Side - Parts Diagram
