Husqvarna Tc 239T - Drive

Name: Husqvarna Tc 239T - Drive
SKU: tc_239t_drive-group
Price: 0.56 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Tc 239T

Model Year -

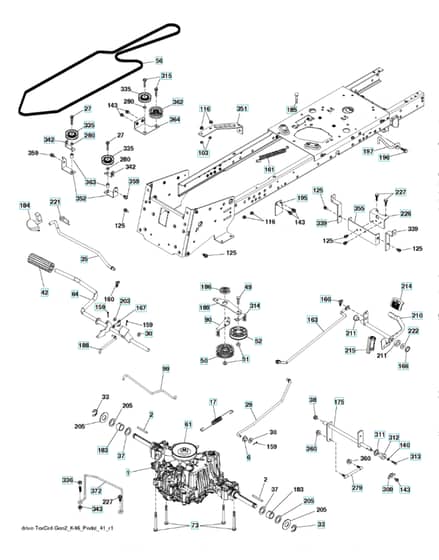

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 12 35-83 Out of stock	Key	£6.16 £5.13
27	HV817 49 05-28 Out of stock	Screw	£4.26 £3.55
33	HV812 00 00-01 Out of stock	Retainer Ring	£0.67 £0.56
35	HV583 86 45-01 Out of stock	Rod	£17.05 £14.21
37	HV532 18 89-67 Out of stock	Washer	£4.34 £3.62
38	HV532 16 96-13 Out of stock	Sleeve	£4.72 £3.93
49	HV872 11 06-14 Out of stock	Bolt	£5.80 £4.83
50	HV532 19 43-27 Out of stock	Pulley	£36.06 £30.05
52	HV532 19 43-26 Out of stock	Pulley	£36.78 £30.65
56	HV591 06 53-10 In stock	Belt	£68.92 £57.43
73	HV874 49 05-44 Out of stock	Screw	£6.65 £5.54
116	HV873 90 05-00 Out of stock	Nut	£2.26 £1.88
140	HV596 02 98-01 Out of stock	Washer	£2.44 £2.03
160	HV532 16 94-84 Out of stock	Pin	£4.00 £3.33
161	HV532 10 57-09 Out of stock	Spring	£15.65 £13.04
166	HV532 42 91-64 Out of stock	Nut	£1.45 £1.21
167	HV532 40 52-57 Out of stock	Latch	£4.87 £4.06
175	HV532 42 93-59 Out of stock	Shaft	£35.39 £29.49
183	HV532 13 70-57 Out of stock	Spacer	£7.93 £6.61
185	HV872 11 06-22 Out of stock	Bolt	£6.62 £5.52
186	HV532 19 43-21 Out of stock	Spacer	£11.56 £9.63
188	HV582 21 70-01 Out of stock	Link	£8.21 £6.84
195	HV580 45 69-01 Out of stock	Bracket	£8.93 £7.44
196	HV817 00 06-16 Out of stock	Screw	£5.33 £4.44
197	HV585 65 86-01 Out of stock	Clutch	£9.92 £8.27
205	HV532 12 17-48 Out of stock	Washer	£5.17 £4.31
210	HV532 40 09-80 Out of stock	Pedal Arm	£35.15 £29.29
211	HV532 12 01-83 Out of stock	Bearing	£5.96 £4.97
215	HV586 60 65-02 Out of stock	Pedal	£30.46 £25.38
221	HV532 40 31-87 Out of stock	Spring	£3.24 £2.70
222	HV879 21 20-10 Out of stock	Washer	£4.78 £3.98
312	HV532 16 56-14 Out of stock	Hub	£5.82 £4.85
313	HV874 78 04-16 Out of stock	Bolt	£3.41 £2.84
315	HV817 58 05-20 Out of stock	Bolt	£4.54 £3.78
335	HV532 19 95-34 In stock	Pulley	£18.20 £15.17
336	HV587 25 96-01 Out of stock	Bolt	£5.33 £4.44
343	HV539 11 28-99 Out of stock	Nut. 5/16-18. Nyloc	£2.60 £2.17
360	HV532 44 47-14 Out of stock	Nut	£1.82 £1.52
372	HV582 65 49-01 Out of stock	Keeper	£20.27 £16.89
