Husqvarna Tc 138 - Mower Deck & Cutting Deck

Name: Husqvarna Tc 138 - Mower Deck & Cutting Deck
SKU: tc_138_mower_deck_cutting_deck-group
Price: 0.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Tc 138 - Mower Deck & Cutting Deck

Description

Husqvarna Tc 138

Model Year -

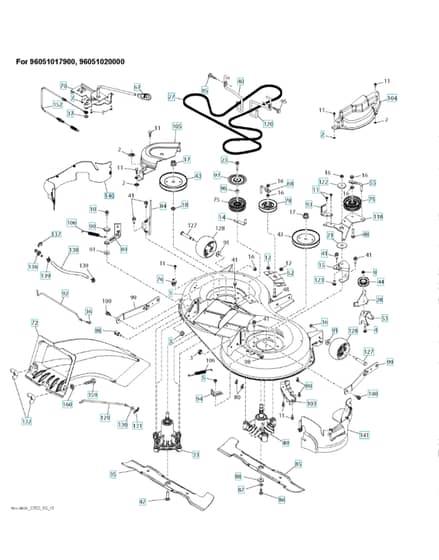

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
5	HV817 00 05-10 Out of stock	Bolt	£2.96 £2.47
10	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
11	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
17	HV596 13 48-01 Out of stock	Hexagon Nut	£1.19 £0.99
18	HV532 18 76-90 In stock	Washer	£2.96 £2.47
21	HV532 17 85-15 In stock	Washer	£7.02 £5.85
27	HV599 36 53-01 Out of stock	Beltfor 96051020000	£71.86 £59.88
33	HV587 81 97-01 Out of stock	Mandrel	£153.76 £128.13
35	HV532 42 79-84 In stock	Ride On Blade	£29.42 £24.52
36	HV532 00 44-97 Out of stock	Clip	£1.51 £1.26
40	HV531 16 95-01 Out of stock	Belt Guide	£18.25 £15.21
41	HV584 95 39-01 Out of stock	Bolt	£4.74 £3.95
44	HV532 19 95-34 In stock	Pulley	£17.75 £14.79
47	HV584 30 93-01 Out of stock	Screw	£6.78 £5.65
67	HV532 40 30-12 Out of stock	Handle	£10.99 £9.16
70	HV532 40 12-46 Out of stock	Clutch	£52.31 £43.59
72	HV582 03 56-01 Out of stock	Chute	£74.20 £61.83
85	HV532 42 79-85 In stock	Blade	£29.42 £24.52
88	HV532 14 02-96 Out of stock	Washer	£7.86 £6.55
90	HV532 19 90-92 Out of stock	Spacer	£6.66 £5.55
93	HV592 85 49-02 Out of stock	Brake	£20.68 £17.23
94	HV532 19 72-50 Out of stock	Bracket	£7.28 £6.07
95	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
99	HV529 84 64-01 In stock	Arm	Was £31.64 £26.37 Special Price £21.52 £17.93
100	HV532 19 65-39 Out of stock	Bolt	£5.94 £4.95
106	HV532 19 32-16 Out of stock	Ressort Retour Frein De Lame	£6.46 £5.38
120	HV531 16 97-01 Out of stock	Belt Guide	£12.98 £10.82
122	HV532 16 57-23 Out of stock	Spacer	£9.58 £7.98
127	HV596 43 44-04 Out of stock	Bolt	£4.36 £3.63
128	HV589 52 73-01 Out of stock	Wheel	£16.66 £13.88
129	HV532 40 48-51 Out of stock	Rod	£17.02 £14.18
131	HV532 19 42-08 Out of stock	Pin	£1.26 £1.05
132	HV532 17 88-99 Out of stock	Knob	£4.66 £3.88
137	HV812 00 00-29 Out of stock	Retainer Ring	£0.78 £0.65
138	HV532 44 07-43 Out of stock	Hose	£5.59 £4.66
140	HV501 57 94-01 Out of stock	Guard	£55.76 £46.47
141	HV501 57 93-01 Out of stock	Guard	£58.81 £49.01
159	HV596 98 75-01 Out of stock	Bolt	£6.62 £5.52
