Husqvarna RIDER 18 - Chassis Rear 2

Name: Husqvarna RIDER 18 - Chassis Rear 2
SKU: rider_18_chassis_rear_2-group
Price: 1.02 GBP
Availability: InStock

Description

Husqvarna RIDER 18

Model Year -

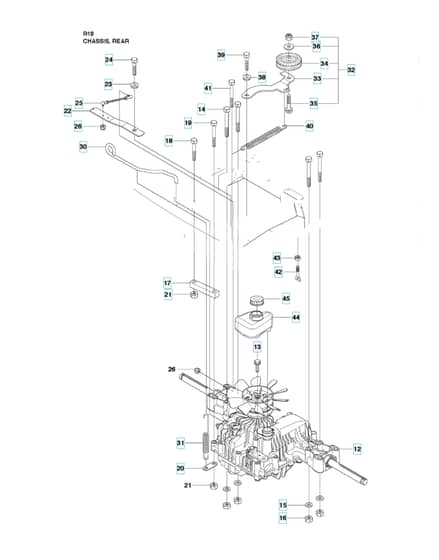

Chassis Rear 2 - Parts Diagram

	Part No.	Details
12	HV506 98 63-01	Transmission	Out of stock	£957.60 £798.00
13	HV506 55 83-02	Screw Ehhft	Out of stock	£3.52 £2.93
14	HV725 24 67-51	Screw Ehhm	Out of stock	£7.02 £5.85
15	HV734 11 64-01	Washer	Out of stock	£2.33 £1.94
17	HV506 98 72-01	Momentfäste	Out of stock	£24.24 £20.20
18	HV725 24 59-51	Screw Ehhm	Out of stock	£6.35 £5.29
19	HV725 24 62-51	Screw Ehhm	Out of stock	£6.41 £5.34
21	HV731 23 18-01	Hexagon Nut	Out of stock	£3.16 £2.63
22	HV506 98 74-03	Lever	Out of stock	£17.69 £14.74
25	HV506 98 75-01	Adjustment Rod	Out of stock	£15.06 £12.55
26	HV732 21 14-01	Lock Nut	Out of stock	£1.22 £1.02
30	HV506 98 82-01	Frikopplingsstång	Out of stock	£12.44 £10.37
31	HV506 83 43-01	Spring	Out of stock	£3.89 £3.24
32	HV506 98 84-01	Belt Tensioner Assy	Out of stock	£75.72 £63.10
34	HV506 94 69-01	Pulley	Out of stock	£37.96 £31.63
35	HV725 24 55-51	Screw	Out of stock	£3.52 £2.93
36	HV734 11 64-41	Washer	Out of stock	£3.37 £2.81
37	HV732 21 18-01	Lock Nut	In stock	£2.33 £1.94
39	HV725 24 51-51	Screw	Out of stock	£3.52 £2.93
40	HV506 98 86-01	Spring	Out of stock	£4.44 £3.70
42	HV506 98 88-01	Pendulum	Out of stock	£7.69 £6.41
43	HV731 23 20-01	Hexagon Nut	Out of stock	£3.04 £2.53
44	HV506 98 90-01	Expansion Tank	Out of stock	£35.36 £29.47
45	HV506 98 80-01	Tank Cap Assy	Out of stock	£30.11 £25.09
