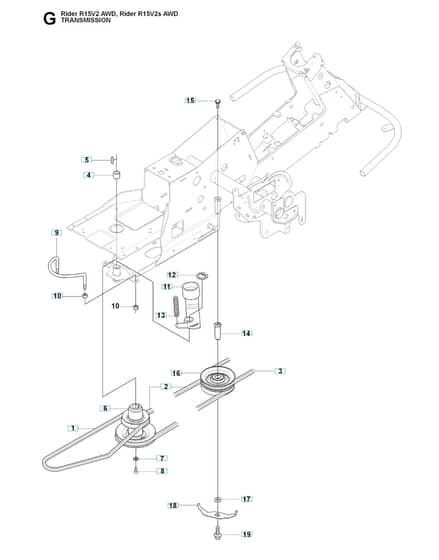

Husqvarna RIDER 15V2S AWD - Transmission

Husqvarna RIDER 15V2S AWD - Transmission

Description

Husqvarna RIDER 15V2S AWD

Model Year -

Transmission - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV589 53 12-01 In stock	Belt		£27.79 £23.16
	2		HV599 67 59-02 In stock	Belt		£44.93 £37.44
	3		HV594 97 80-01 In stock	Belt		£54.66 £45.55
	4		HV506 50 92-01 Out of stock	Spacing Sleeve		£9.66 £8.05
	5		HV506 55 59-01 Out of stock	Wedge		£4.54 £3.78
	6		HV535 48 24-01 Out of stock	Pulley		£103.06 £85.88
	7		HV506 59 75-01 Out of stock	Washer		£8.56 £7.13
	8		HV506 55 60-02 Out of stock	Screw Unc		£7.22 £6.02
	9		HV506 66 45-01 Out of stock	Belt Guide		£17.65 £14.71
	10		HV731 23 20-01 Out of stock	Hexagon Nut		£2.96 £2.47
	11		HV535 48 44-01 Out of stock	Belt Tensioner Assy		£46.08 £38.40
	12		HV735 31 26-00 Out of stock	Circlip		£0.73 £0.61
	13		HV506 66 56-01 In stock	Spring		£14.05 £11.71
	15		HV506 67 54-02 In stock	Screw Ehhfm		£6.49 £5.41
	16		HV535 48 22-01 Out of stock	Pulley		£82.92 £69.10
	17		HV506 77 57-01 Out of stock	Washer		£5.39 £4.49
	18		HV544 40 53-01 Out of stock	Belt Guide		£10.22 £8.52
	19		HV506 57 01-05 Out of stock	Screw Ehhfm		£0.80 £0.67

Description

Husqvarna RIDER 15V2S AWD

Model Year -

Transmission - Parts Diagram
