Husqvarna RIDER 15V2S AWD - Frame

Husqvarna RIDER 15V2S AWD - Frame
Husqvarna RIDER 15V2S AWD - Frame

Description

Husqvarna RIDER 15V2S AWD

Model Year -

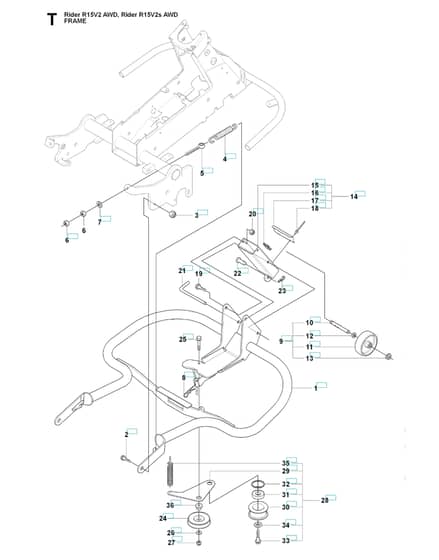

Frame - Parts Diagram

Ref. Img. Part No. Details
  2 Collar Screw
Collar Screw
HV506 89 58-01 Out of stock
Collar Screw
£8.45 £7.04

  3 Hexagon Locking Nut
Hexagon Locking Nut
HV732 25 22-01 Out of stock
Hexagon Locking Nut
£5.63 £4.69

  4 Spring
Spring
HV506 83 76-01 Out of stock
Spring
£35.08 £29.23

  5 Ring Bolt
Ring Bolt
HV506 83 77-01 Out of stock
Ring Bolt
£12.12 £10.10

  6 Hexagon Nut
Hexagon Nut
HV731 23 20-01 Out of stock
Hexagon Nut
£2.96 £2.47

  7 Washer
Washer
HV734 11 72-01 Out of stock
Washer
£1.87 £1.56

  8 Hair Pin Cotter
Hair Pin Cotter
HV506 96 66-01 Out of stock
Hair Pin Cotter
£0.98 £0.82

  9 Wheel Assy
Wheel Assy
HV506 98 14-01 Out of stock
Wheel Assy
£13.03 £10.86

  10 Shaft
Shaft
HV506 98 00-01 Out of stock
Shaft
£17.87 £14.89

  11 Wheel
Wheel
HV506 97 96-01 Out of stock
Wheel
£23.26 £19.38

  12 Washer
Washer
HV734 11 77-71 Out of stock
Washer
£2.46 £2.05

  13 E-Clip
E-Clip
HV735 31 15-20 Out of stock
E-Clip
£0.68 £0.57

  15 Link Assy
Link Assy
HV506 99 79-01 Out of stock
Link Assy
£84.97 £70.81

  16 Låsdon
Låsdon
HV506 96 37-01 Out of stock
Låsdon
£1.57 £1.31

  18 Blind Rivet
Blind Rivet
HV722 78 39-02 Out of stock
Blind Rivet
£2.82 £2.35

  19 Screw Ehhfm
Screw Ehhfm
HV506 59 74-01 Out of stock
Screw Ehhfm
£5.72 £4.77

  21 Pen
Pen
HV506 97 46-01 Out of stock
Pen
£17.84 £14.87

  22 Clevis Pin
Clevis Pin
HV721 86 17-01 Out of stock
Clevis Pin
£3.89 £3.24

  23 Spring Cotter
Spring Cotter
HV721 68 02-51 Out of stock
Spring Cotter
£0.79 £0.66

  24 Pulley
Pulley
HV506 97 48-01 Out of stock
Pulley
£54.55 £45.46

  25 Screw Ehhm
Screw Ehhm
HV725 24 61-51 Out of stock
Screw Ehhm
£6.10 £5.08

  27 Lock Nut
Lock Nut
HV732 21 18-01 In stock
Lock Nut
£2.33 £1.94

  29 Spännarm
Spännarm
HV535 49 37-01 Out of stock
Spännarm
£24.97 £20.81

  31 Ball Bearing
Ball Bearing
HV738 21 04-04 Out of stock
Ball Bearing
£8.00 £6.67

  32 Circlip
Circlip
HV735 31 38-10 Out of stock
Circlip
£0.80 £0.67

  33 Screw Ehhft
Screw Ehhft
HV506 55 83-02 Out of stock
Screw Ehhft
£3.43 £2.86

  34 Washer
Washer
HV734 11 64-41 Out of stock
Washer
£3.20 £2.67

  36 Bushing
Bushing
HV544 00 74-01 Out of stock
Bushing
£18.94 £15.78


Description

Husqvarna RIDER 15V2S AWD

Model Year -

Frame - Parts Diagram
