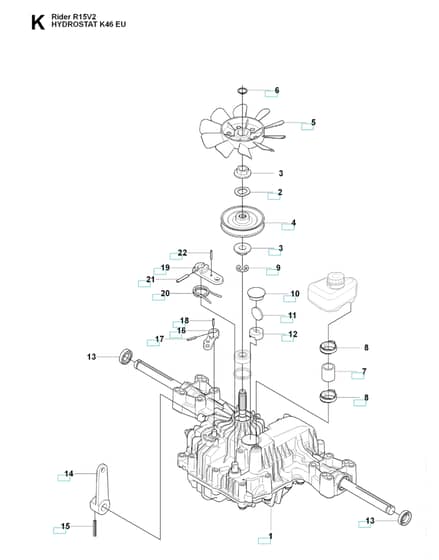

Husqvarna RIDER 15V2 - Transmission 4

Husqvarna RIDER 15V2 - Transmission 4

Description

Husqvarna RIDER 15V2

Model Year -

Transmission 4 - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV506 98 63-01 Out of stock	Transmission		£1,175.88 £979.90
	2		HV506 98 65-01 Out of stock	Spring Washer		£4.60 £3.83
	3		HV506 98 66-01 Out of stock	Distance		£9.31 £7.76
	4		HV502 45 19-01 Out of stock	Pulley		£49.07 £40.89
	5		HV506 98 68-01 Out of stock	Fan		£40.32 £33.60
	6		HV735 31 15-00 Out of stock	Circlip		£2.20 £1.83
	7		HV502 45 16-01 Out of stock	Tube		£18.90 £15.75
	9		HV535 40 28-07 Out of stock	Clip		£3.91 £3.26
	10		HV535 40 28-32 Out of stock	Plug		£13.02 £10.85
	12		HV535 40 28-30 Out of stock	Holder		£16.90 £14.08
	13		HV535 40 28-37 Out of stock	Sealing		£34.26 £28.55
	15		HV535 40 28-09 Out of stock	Pin Retaining Screw		£4.66 £3.88
	16		HV535 40 28-17 Out of stock	Lever		£16.42 £13.68
	17		HV535 40 28-16 Out of stock	Pin Retaining Screw		£3.32 £2.77
	18		HV535 40 28-33 Out of stock	Pin Retaining Screw		£3.47 £2.89
	21		HV535 40 28-40 Out of stock	Pin Retaining Screw		£4.38 £3.65
	22		HV535 40 28-41 Out of stock	Pin Retaining Screw		£3.56 £2.97

Description

Husqvarna RIDER 15V2

Model Year -

Transmission 4 - Parts Diagram
