Husqvarna RIDER 15T AWD

Model Year -

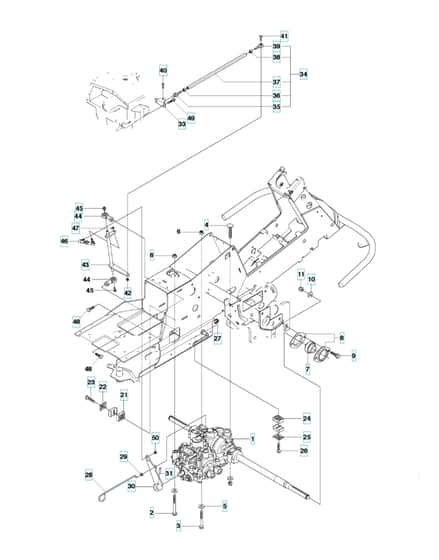

Engine 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV575 48 43-01 Out of stock	Transmission	£1,409.33 £1,174.44
2	HV725 24 67-51 Out of stock	Screw Ehhm	£6.84 £5.70
4	HV535 42 38-03 Out of stock	Screw Rsqm	£6.37 £5.31
7	HV544 00 89-02 Out of stock	Bearing	£82.90 £69.08
8	HV544 00 90-02 Out of stock	Bearing Housing	£26.32 £21.93
9	HV506 57 01-05 Out of stock	Screw Ehhfm	£0.80 £0.67
10	HV734 11 64-01 Out of stock	Washer	£2.20 £1.83
11	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
21	HV544 37 33-03 Out of stock	Pipe Clamp	£5.15 £4.29
23	HV725 23 78-61 Out of stock	Screw Ehhft	£3.43 £2.86
24	HV544 37 33-02 Out of stock	Pipe Clamp	£5.15 £4.29
25	HV544 37 38-02 Out of stock	Cover Plate	£6.05 £5.04
26	HV506 57 01-07 Out of stock	Screw Ehhfm	£6.41 £5.34
27	HV544 81 17-01 Out of stock	Cage Nut	£3.23 £2.69
29	HV503 73 58-01 In stock	Bushing	£5.28 £4.40
31	HV721 43 47-01 Out of stock	Spring Pin	£1.60 £1.33
34	HV544 45 67-03 Out of stock	Rod	£87.97 £73.31
35	HV535 48 66-02 Out of stock	Rod End	£10.26 £8.55
36	HV503 22 10-18 Out of stock	Hexagon Nut	£1.43 £1.19
37	HV535 48 65-03 Out of stock	Rod	£29.48 £24.57
38	HV731 23 16-01 Out of stock	Hexagon Nut	£1.43 £1.19
39	HV535 48 66-01 Out of stock	Rod End	£10.43 £8.69
41	HV725 23 70-71 Out of stock	Screw Ehhm	£1.13 £0.94
44	HV506 95 17-01 Out of stock	Rod End	£18.22 £15.18
45	HV535 47 52-12 Out of stock	Screw Ehhfm	£3.43 £2.86
46	HV544 44 19-01 Out of stock	Adjustment Rod	£16.58 £13.82
47	HV732 25 16-01 Out of stock	Hexagon Locking Nut	£1.87 £1.56
48	HV725 24 93-71 Out of stock	Screw Ehhm	£6.10 £5.08
49	HV725 23 66-51 Out of stock	Hexagonal Screw M6X12	£1.36 £1.13
50	HV732 21 16-01 Out of stock	Lock Nut	£1.66 £1.38
