Husqvarna RIDER 155 - Frame

Name: Husqvarna RIDER 155 - Frame
SKU: rider_155_frame-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna RIDER 155

Model Year -

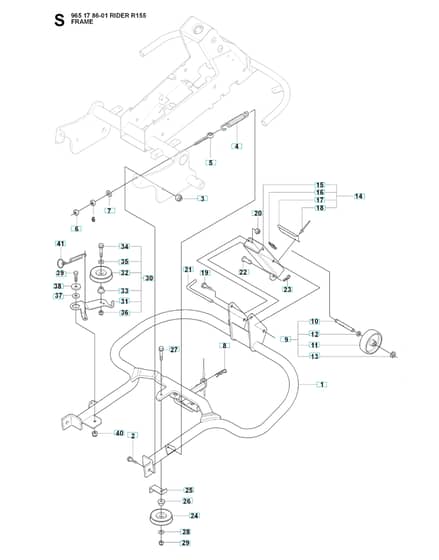

Frame - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV535 47 10-01 Out of stock	Deck Attachment Assy	£290.93 £242.44
2	HV506 89 58-01 Out of stock	Collar Screw	£8.45 £7.04
3	HV732 25 22-01 Out of stock	Hexagon Locking Nut	£5.63 £4.69
4	HV506 83 76-01 Out of stock	Spring	£35.08 £29.23
5	HV506 83 77-01 Out of stock	Ring Bolt	£12.12 £10.10
6	HV731 23 20-01 Out of stock	Hexagon Nut	£2.96 £2.47
7	HV734 11 72-01 Out of stock	Washer	£1.87 £1.56
8	HV506 96 66-01 Out of stock	Hair Pin Cotter	£0.98 £0.82
9	HV506 98 14-01 Out of stock	Wheel Assy	£13.03 £10.86
10	HV506 98 00-01 Out of stock	Shaft	£17.87 £14.89
11	HV506 97 96-01 Out of stock	Wheel	£23.26 £19.38
12	HV734 11 77-71 Out of stock	Washer	£2.46 £2.05
13	HV735 31 15-20 Out of stock	E-Clip	£0.68 £0.57
15	HV506 99 79-01 Out of stock	Link Assy	£84.97 £70.81
16	HV506 96 37-01 Out of stock	Låsdon	£1.57 £1.31
18	HV722 78 39-02 Out of stock	Blind Rivet	£2.82 £2.35
19	HV506 59 74-01 Out of stock	Screw Ehhfm	£5.72 £4.77
21	HV506 97 46-01 Out of stock	Pen	£17.84 £14.87
22	HV721 86 17-01 Out of stock	Clevis Pin	£3.89 £3.24
23	HV721 68 02-51 Out of stock	Spring Cotter	£0.79 £0.66
24	HV506 97 48-01 Out of stock	Pulley	£54.55 £45.46
25	HV506 97 50-01 Out of stock	Belt Guide	£11.02 £9.18
27	HV725 24 61-51 Out of stock	Screw Ehhm	£6.10 £5.08
30	HV506 97 62-01 Out of stock	Belt Tensioner Assy	£78.41 £65.34
31	HV506 97 63-01 Out of stock	Spännarm	£36.73 £30.61
32	HV506 53 27-01 Out of stock	Pulley	£55.90 £46.58
33	HV506 82 68-01 Out of stock	Bushing	£12.79 £10.66
34	HV725 24 57-51 Out of stock	Screw	£5.22 £4.35
35	HV734 11 64-41 Out of stock	Washer	£3.20 £2.67
36	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
37	HV506 59 75-01 Out of stock	Washer	£8.56 £7.13
38	HV506 98 25-01 Out of stock	Washer	£20.30 £16.92
39	HV725 24 95-71 Out of stock	Screw Ehhm	£6.61 £5.51
40	HV732 21 20-51 In stock	Nut	£4.51 £3.76
