Husqvarna RIDER 155 AWD - Protection Frame

Husqvarna RIDER 155 AWD - Protection Frame

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna RIDER 155 AWD - Protection Frame

Husqvarna RIDER 155 AWD - Protection Frame

Description

Husqvarna RIDER 155 AWD

Model Year -

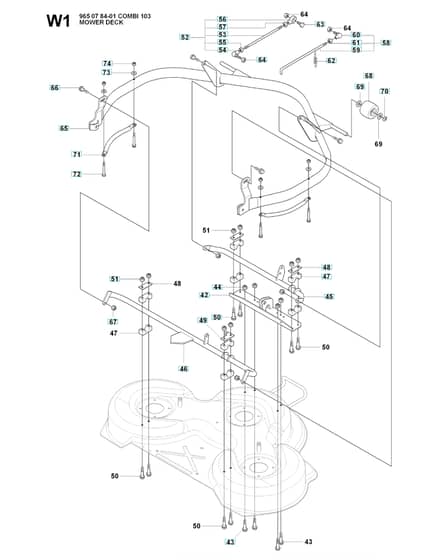

Protection Frame - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	43		HV725 24 51-71 Out of stock	Screw Ehhm		£4.43 £3.69
	45		HV535 46 88-01 Out of stock	Främre Tvärrör Kpl.		£144.12 £120.10
	46		HV535 46 87-01 Out of stock	Rear Cross Tubes Ass		£116.28 £96.90
	47		HV506 86 96-01 Out of stock	Bearing		£8.17 £6.81
	48		HV506 81 38-01 Out of stock	Reinforcing Plate		£6.43 £5.36
	50		HV725 24 61-51 Out of stock	Screw Ehhm		£6.25 £5.21
	56		HV506 95 17-01 Out of stock	Rod End		£18.68 £15.57
	57		HV731 23 20-01 Out of stock	Hexagon Nut		£3.04 £2.53
	59		HV506 94 13-06 Out of stock	Connection Rod		£20.46 £17.05
	60		HV506 78 99-01 Out of stock	Vinkellänk Din 71802		£11.04 £9.20
	61		HV506 89 76-01 Out of stock	Nut		£3.62 £3.02
	62		HV506 53 56-03 Out of stock	Draw Spring		£5.95 £4.96
	63		HV725 24 95-71 Out of stock	Screw Ehhm		£7.00 £5.83
	64		HV732 21 20-51 In stock	Nut		£4.51 £3.76
	66		HV506 59 74-01 Out of stock	Screw Ehhfm		£6.35 £5.29
	67		HV732 21 18-01 In stock	Lock Nut		£2.33 £1.94
	68		HV506 96 30-01 Out of stock	Wheel Assy		£80.28 £66.90
	69		HV535 46 41-01 In stock	Washer		£4.15 £3.46
	70		HV735 31 17-00 In stock	Circlip		£0.66 £0.55
	71		HV535 47 63-01 Out of stock	Side Rail		£50.24 £41.87
	72		HV727 63 83-01 Out of stock	Screw Rsqm		£4.82 £4.02
	74		HV732 21 16-01 Out of stock	Lock Nut		£1.76 £1.47

Description

Husqvarna RIDER 155 AWD

Model Year -

Protection Frame - Parts Diagram
