Husqvarna RIDER 13 BIOCLIP - Chassis & Frame

Name: Husqvarna RIDER 13 BIOCLIP - Chassis & Frame
SKU: rider_13_bioclip_chassis_frame-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna RIDER 13 BIOCLIP - Chassis & Frame

Description

Husqvarna RIDER 13 BIOCLIP

Model Year -

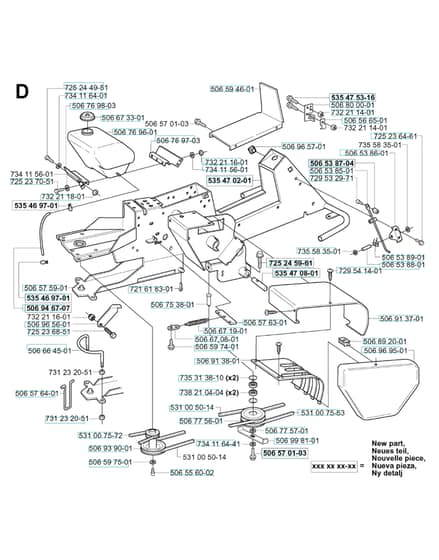

Chassis & Frame - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
506	HV506 80 00-01 Out of stock	Bracket	£9.78 £8.15
506	HV506 91 38-01 Out of stock	Control Plate	£56.44 £47.03
506	HV506 53 87-04 Out of stock	Control Button	£2.30 £1.92
506	HV506 55 60-02 Out of stock	Screw Unc	£7.22 £6.02
506	HV506 57 59-01 Out of stock	Pivot	£38.42 £32.02
506	HV506 59 74-01 Out of stock	Screw Ehhfm	£5.72 £4.77
506	HV506 67 08-01 Out of stock	Link	£9.30 £7.75
506	HV506 75 38-01 Out of stock	Axle	£46.70 £38.92
506	HV506 89 20-01 Out of stock	Speed Nut	£7.50 £6.25
506	HV506 96 95-01 Out of stock	Control Cap	£22.61 £18.84
506	HV506 53 85-01 Out of stock	Locking Arm	£11.27 £9.39
506	HV506 53 88-01 Out of stock	Shaft	£4.62 £3.85
506	HV506 56 65-01 Out of stock	Clip	£0.79 £0.66
506	HV506 57 63-01 In stock	Spring Retainer	£12.68 £10.57
506	HV506 59 75-01 Out of stock	Washer	£8.56 £7.13
506	HV506 67 19-01 Out of stock	Spring	£32.44 £27.03
506	HV506 77 57-01 Out of stock	Washer	£5.39 £4.49
506	HV506 91 37-01 Out of stock	Cover Plate	£45.18 £37.65
506	HV506 99 81-01 Out of stock	Belt Guide	£19.30 £16.08
506	HV506 53 86-01 Out of stock	Bracket	£9.78 £8.15
506	HV506 53 89-01 Out of stock	Spring	£3.67 £3.06
506	HV506 57 01-03 Out of stock	Screw Ehhfm	£4.70 £3.92
506	HV506 57 64-01 Out of stock	Cable Holder	£5.06 £4.22
506	HV506 66 45-01 Out of stock	Belt Guide	£17.65 £14.71
506	HV506 67 33-01 Out of stock	Tank Cap Assy	£39.13 £32.61
535	HV535 47 02-01 Out of stock	Frame	£616.36 £513.63
535	HV535 47 08-01 Out of stock	Wheel Axle	£45.78 £38.15
535	HV535 47 53-16 Out of stock	Screw Ehhfm	£1.87 £1.56
721	HV721 61 83-01 Out of stock	Split Pin	£0.66 £0.55
725	HV725 24 49-51 Out of stock	Screw	£3.14 £2.62
725	HV725 23 64-61 Out of stock	Screw Ehhft	£2.40 £2.00
725	HV725 24 59-61 Out of stock	Screw Ehhft	£5.99 £4.99
725	HV725 23 68-51 Out of stock	Screw	£2.14 £1.78
729	HV729 54 14-01 Out of stock	Screw Crpant	£1.19 £0.99
731	HV731 23 20-01 Out of stock	Hexagon Nut	£2.96 £2.47
732	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
732	HV732 21 14-01 Out of stock	Lock Nut	£1.22 £1.02
732	HV732 21 16-01 Out of stock	Lock Nut	£1.66 £1.38
734	HV734 11 64-01 Out of stock	Washer	£2.20 £1.83
734	HV734 11 64-41 Out of stock	Washer	£3.20 £2.67
735	HV735 31 38-10 Out of stock	Circlip	£0.80 £0.67
735	HV735 58 35-01 Out of stock	Washer	£2.46 £2.05
738	HV738 21 04-04 Out of stock	Ball Bearing	£8.00 £6.67
