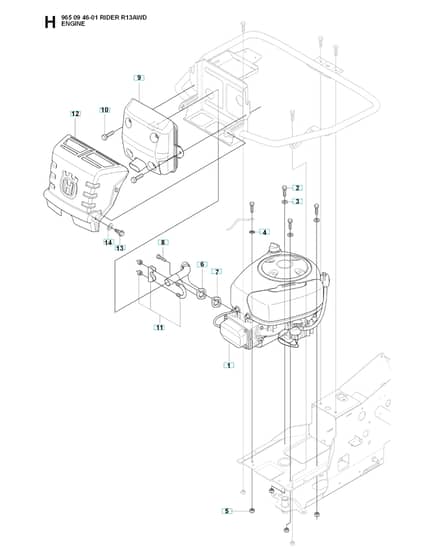

Husqvarna RIDER 13 AWD - Engine

Husqvarna RIDER 13 AWD - Engine

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna RIDER 13 AWD - Engine

Husqvarna RIDER 13 AWD - Engine

Description

Husqvarna RIDER 13 AWD

Model Year -

Engine - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	4		HV506 50 92-01 Out of stock	Spacing Sleeve		£9.66 £8.05
	5		HV506 55 59-01 Out of stock	Wedge		£4.54 £3.78
	6		HV535 48 24-01 Out of stock	Pulley		£103.06 £85.88
	7		HV506 59 75-01 Out of stock	Washer		£8.56 £7.13
	8		HV506 55 60-02 Out of stock	Screw Unc		£7.22 £6.02
	9		HV506 66 45-01 Out of stock	Belt Guide		£17.65 £14.71
	10		HV731 23 20-01 Out of stock	Hexagon Nut		£2.96 £2.47
	11		HV535 48 44-01 Out of stock	Belt Tensioner Assy		£46.08 £38.40
	12		HV735 31 26-00 Out of stock	Circlip		£0.73 £0.61
	13		HV506 66 56-01 In stock	Spring		£14.05 £11.71
	15		HV506 67 54-01 Out of stock	Screw Ehhfm		£5.93 £4.94
	16		HV535 48 22-01 Out of stock	Pulley		£82.92 £69.10
	17		HV506 77 57-01 Out of stock	Washer		£5.39 £4.49
	18		HV544 40 53-01 Out of stock	Belt Guide		£10.22 £8.52
	19		HV506 57 01-05 Out of stock	Screw Ehhfm		£0.80 £0.67

Description

Husqvarna RIDER 13 AWD

Model Year -

Engine - Parts Diagram
