Husqvarna RIDER 1030 - 48" 122cm Cutting Deck

Husqvarna RIDER 1030 - 48" 122cm Cutting Deck

Description

Husqvarna RIDER 1030

Model Year -

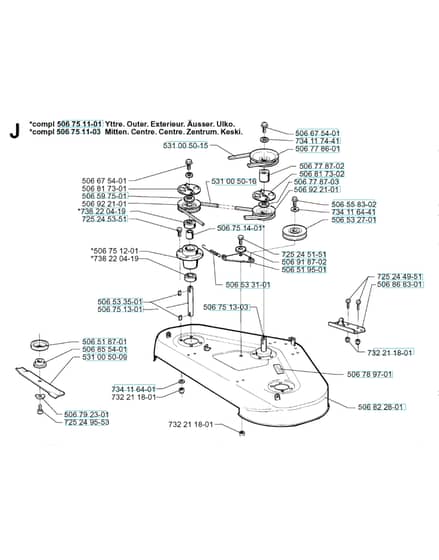

48" 122cm Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	506		HV506 53 31-01 In stock	Spring		£11.11 £9.26
	506		HV506 59 75-01 Out of stock	Washer		£8.56 £7.13
	506		HV506 75 13-01 Out of stock	Shaft		£49.07 £40.89
	506		HV506 78 97-01 Out of stock	Label		£4.74 £3.95
	506		HV506 51 87-01 Out of stock	Dust Cover		£5.87 £4.89
	506		HV506 53 35-01 Out of stock	Parallel Key		£4.20 £3.50
	506		HV506 67 54-01 Out of stock	Screw Ehhfm		£5.93 £4.94
	506		HV506 75 14-01 Out of stock	Spacer		£11.56 £9.63
	506		HV506 92 21-01 Out of stock	Pulley		£35.17 £29.31
	506		HV506 53 27-01 Out of stock	Pulley		£55.90 £46.58
	506		HV506 55 83-02 Out of stock	Screw Ehhft		£3.43 £2.86
	506		HV506 75 11-01 Out of stock	Blade Housing Assyyttre.		£104.89 £87.41
	506		HV506 77 86-01 In stock	Pulley		Was £75.24 £62.70 Special Price £55.28 £46.07
	531		HV589 53 14-01-1 In stock	Belt		£58.56 £48.80
	725		HV725 24 49-51 Out of stock	Screw		£3.14 £2.62
	725		HV725 24 53-51 Out of stock	Screw Ehhm		£2.93 £2.44
	732		HV732 21 18-01 In stock	Lock Nut		£2.33 £1.94
	734		HV734 11 64-01 Out of stock	Washer		£2.20 £1.83
	734		HV734 11 64-41 Out of stock	Washer		£3.20 £2.67
	734		HV734 11 74-41 Out of stock	Washer		£4.38 £3.65
	738		HV738 22 04-19 Out of stock	Ball Bearing		£8.12 £6.77

Description

Husqvarna RIDER 1030

Model Year -

48" 122cm Cutting Deck - Parts Diagram
