R 422TS - Ride On Mower Parts
Husqvarna R 422TS - Fuel System

Husqvarna R 422TS - Fuel System

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 422TS - Fuel System

Husqvarna R 422TS - Fuel System

Description

Husqvarna R 422TS

Model Year -

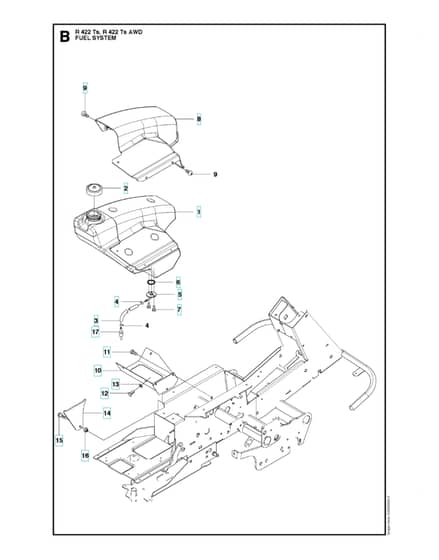

Fuel System - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV535 42 52-01 Out of stock	Fuel Tank		£129.84 £108.20
	2		HV506 67 33-01 Out of stock	Tank Cap Assy		£41.34 £34.45
	3		HV504 80 00-07 Out of stock	Fuel Hose		£18.28 £15.23
	5		HV506 89 18-01 Out of stock	Connection		£28.55 £23.79
	6		HV740 48 12-02 Out of stock	O-Ring		£3.62 £3.02
	7		HV535 41 56-19 Out of stock	Screw		£1.93 £1.61
	8		HV535 43 27-01 Out of stock	Design Cover Tank		£135.12 £112.60
	9		HV535 42 58-01 Out of stock	Screw Ihpanm		£1.93 £1.61
	10		HV535 43 86-01 Out of stock	Bracket		£52.51 £43.76
	11		HV725 24 51-71 Out of stock	Screw Ehhm		£4.43 £3.69
	12		HV725 23 66-51 Out of stock	Hexagonal Screw M6X12		£1.39 £1.16
	15		HV725 24 95-71 Out of stock	Screw Ehhm		£7.00 £5.83
	16		HV732 21 20-01 Out of stock	Lock Nut		£4.51 £3.76
