Description

Husqvarna R 419TSX AWD

Model Year -

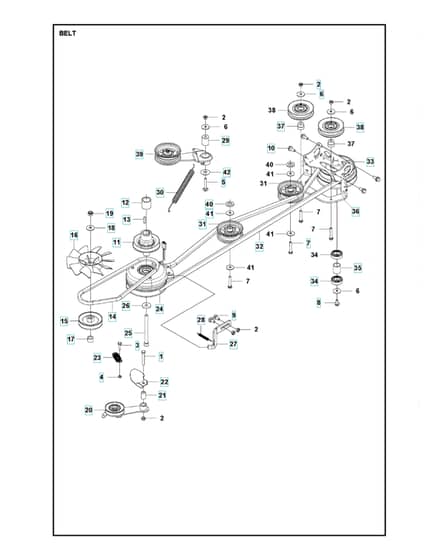

Belt - Parts Diagram

Ref. Img. Part No. Details
  1 Screw Ehhm
Screw Ehhm
HV725 24 62-51 Out of stock
Screw Ehhm
£6.25 £5.21

  2 Lock Nut
Lock Nut
HV732 21 18-01 In stock
Lock Nut
£2.33 £1.94

  3 Screw Ehhm
Screw Ehhm
HV725 23 72-71 Out of stock
Screw Ehhm
£2.40 £2.00

  4 Hexagon Nut
Hexagon Nut
HV731 23 16-01 Out of stock
Hexagon Nut
£1.43 £1.19

  6 Washer
Washer
HV544 22 16-01 Out of stock
Washer
£4.92 £4.10

  8 Screw Ehhfm
Screw Ehhfm
HV506 57 01-03 Out of stock
Screw Ehhfm
£4.70 £3.92

  9 Screw Rsqm
Screw Rsqm
HV727 64 51-51 Out of stock
Screw Rsqm
£3.76 £3.13

  10 Screw Ehhfm
Screw Ehhfm
HV506 57 01-04 Out of stock
Screw Ehhfm
£4.70 £3.92

  12 Spacing Sleeve
Spacing Sleeve
HV506 50 92-01 Out of stock
Spacing Sleeve
£9.66 £8.05

  14 Belt
Belt
HV589 56 23-01 Out of stock
Belt
£25.96 £21.63

  15 Pulley
Pulley
HV506 99 14-01 Out of stock
Pulley
£84.47 £70.39

  16 Fan
Fan
HV506 94 81-01 Out of stock
Fan
£15.97 £13.31

  18 Washer
Washer
HV734 11 74-41 Out of stock
Washer
£4.38 £3.65

  19 Lock Nut
Lock Nut
HV732 21 20-01 Out of stock
Lock Nut
£4.51 £3.76

  20 Belt Tensioner Assy
Belt Tensioner Assy
HV506 99 30-01 Out of stock
Belt Tensioner Assy
£63.97 £53.31

  21 Pipe
Pipe
HV506 99 20-01 Out of stock
Pipe
£17.02 £14.18

  23 Spring
Spring
HV506 54 25-01 In stock
Spring
£6.36 £5.30

  24 Clutch
Clutch
HV577 06 55-01 Out of stock
Clutch
£388.09 £323.41

  26 Washer
Washer
HV506 59 75-01 Out of stock
Washer
£8.56 £7.13

  28 Spring
Spring
HV506 83 43-01 Out of stock
Spring
£3.67 £3.06

  30 Spring
Spring
HV506 66 56-01 In stock
Spring
£14.05 £11.71

  31 Pulley
Pulley
HV577 44 47-01 Out of stock
Pulley
£30.82 £25.68

  32 Belt
Belt
HV594 74 66-01 In stock
Belt
Was £97.07 £80.89 Special Price £56.42 £47.02

  34 Ball Bearing
Ball Bearing
HV738 21 04-04 Out of stock
Ball Bearing
£8.00 £6.67

  37 Bushing
Bushing
HV506 82 68-02 Out of stock
Bushing
£13.55 £11.29

  38 Pulley Assy
Pulley Assy
HV589 61 97-01 Out of stock
Pulley Assy
£35.76 £29.80

  40 Washer
Washer
HV734 11 86-01 Out of stock
Washer
£0.91 £0.76

  42 Washer
Washer
HV504 46 09-01 Out of stock
Washer
£3.67 £3.06


Description

Husqvarna R 419TSX AWD

Model Year -

Belt - Parts Diagram
