Husqvarna R 418TS AWD - Mower Lift & Deck Lift

Name: Husqvarna R 418TS AWD - Mower Lift & Deck Lift
SKU: r_418ts_awd_mower_lift_deck_lift-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 418TS AWD - Mower Lift & Deck Lift

Description

Husqvarna R 418TS AWD

Model Year -

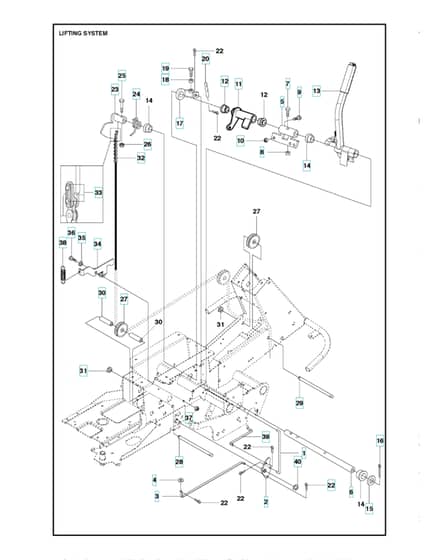

Mower Lift & Deck Lift - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV504 63 67-02 Out of stock	Link	£12.47 £10.39
4	HV734 11 64-41 Out of stock	Washer	£3.20 £2.67
5	HV506 95 11-01 Out of stock	Driver Assy	£107.52 £89.60
6	HV506 96 80-01 Out of stock	Shaft	£68.92 £57.43
9	HV725 24 53-71 Out of stock	Screw Ehhm	£4.20 £3.50
10	HV731 23 18-01 Out of stock	Hexagon Nut	£2.99 £2.49
11	HV506 95 14-01 Out of stock	Actuator	£30.05 £25.04
13	HV504 90 79-01 Out of stock	Lifting Lever Assy	£73.86 £61.55
14	HV584 87 13-01 Out of stock	Bearing	£6.05 £5.04
15	HV506 51 57-01 Out of stock	Washer	£4.38 £3.65
17	HV506 78 43-01 Out of stock	Link Assy	£11.58 £9.65
19	HV725 24 97-51 Out of stock	Screw	£6.61 £5.51
20	HV525 40 66-01 Out of stock	Pen	£10.93 £9.11
22	HV721 61 83-01 Out of stock	Split Pin	£0.66 £0.55
23	HV506 94 05-01 Out of stock	Lifting Arm	£45.04 £37.53
24	HV506 81 70-01 Out of stock	Spring	£6.80 £5.67
25	HV725 25 44-71 Out of stock	Screw Ehhm	£8.23 £6.86
26	HV732 25 22-01 Out of stock	Hexagon Locking Nut	£5.63 £4.69
27	HV506 90 56-01 Out of stock	Offset Pulley	£22.33 £18.61
28	HV506 90 57-01 Out of stock	Shaft	£18.73 £15.61
29	HV506 90 57-02 Out of stock	Shaft	£19.40 £16.17
30	HV506 90 58-01 Out of stock	Tube Sleeve	£12.79 £10.66
31	HV735 31 18-20 Out of stock	E-Clip	£0.68 £0.57
32	HV506 55 46-08 Out of stock	Chain	£53.06 £44.22
33	HV506 55 47-01 In stock	Linkage	£4.48 £3.73
34	HV504 62 87-02 Out of stock	Brake Lever	£19.34 £16.12
36	HV506 57 01-05 Out of stock	Screw Ehhfm	£0.80 £0.67
37	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
38	HV506 54 25-01 In stock	Spring	£6.36 £5.30
39	HV504 63 68-01 Out of stock	Rod	£13.25 £11.04
40	HV735 31 14-20 Out of stock	E-Clip	£0.66 £0.55
