Husqvarna R 418TS - 94cm Cutting Deck 3

Husqvarna R 418TS - 94cm Cutting Deck 3

Description

Husqvarna R 418TS

Model Year -

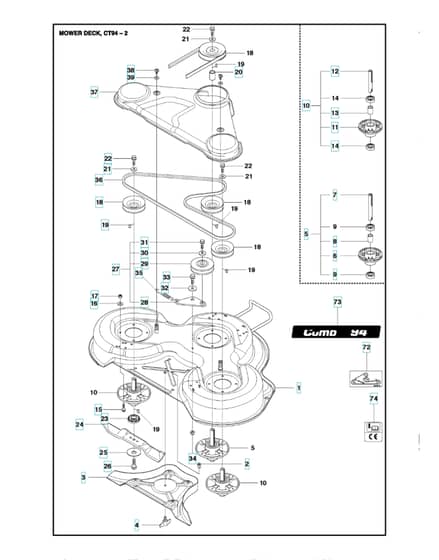

94cm Cutting Deck 3 - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	2		HV506 91 62-01 Out of stock	Nut		£5.82 £4.85
	3		HV544 06 58-01 Out of stock	Plug		£86.76 £72.30
	4		HV544 06 61-01 Out of stock	Knob		£5.90 £4.92
	7		HV535 42 87-01 Out of stock	Shaft		£39.36 £32.80
	12		HV535 42 87-02 Out of stock	Shaft		£64.44 £53.70
	14		HV738 22 05-19 Out of stock	Ball Bearing		£9.46 £7.88
	15		HV535 42 38-01 Out of stock	Screw Rsqm		£4.98 £4.15
	16		HV734 11 64-01 Out of stock	Washer		£2.33 £1.94
	18		HV535 42 90-01 Out of stock	Pulley		£75.00 £62.50
	19		HV506 53 35-01 Out of stock	Parallel Key		£4.22 £3.52
	20		HV535 42 88-01 Out of stock	Spacer		£8.76 £7.30
	21		HV535 42 92-01 Out of stock	Washer		£9.68 £8.07
	23		HV535 50 42-01 Out of stock	Adapter		£18.42 £15.35
	24		HV579 65 26-10 Out of stock	Blade		£48.68 £40.57
	25		HV506 79 23-02 Out of stock	Knife Plate		£13.92 £11.60
	26		HV725 25 42-51 Out of stock	Screw Ehhm		£8.47 £7.06
	29		HV506 53 27-01 Out of stock	Pulley		£55.90 £46.58
	30		HV734 11 64-41 Out of stock	Washer		£3.37 £2.81
	31		HV506 55 83-02 Out of stock	Screw Ehhft		£3.52 £2.93
	33		HV725 24 51-71 Out of stock	Screw Ehhm		£4.43 £3.69
	34		HV732 21 18-01 In stock	Lock Nut		£2.33 £1.94
	35		HV506 53 31-01 In stock	Spring		£12.28 £10.23
	36		HV589 53 85-01 Out of stock	Belt		£56.30 £46.92
	37		HV544 06 63-01 Out of stock	Belt Cover		£55.12 £45.93
	38		HV506 98 26-01 Out of stock	Screw		£2.54 £2.12
	39		HV506 55 97-01 Out of stock	Washer		£2.76 £2.30
	72		HV506 78 97-01 Out of stock	Label		£5.04 £4.20
	74		HV506 92 90-01 Out of stock	Label		£2.93 £2.44

Description

Husqvarna R 418TS

Model Year -

94cm Cutting Deck 3 - Parts Diagram
