Husqvarna R 322T AWD - Mower Lift & Deck Lift 2

Description

Husqvarna R 322T AWD

Model Year -

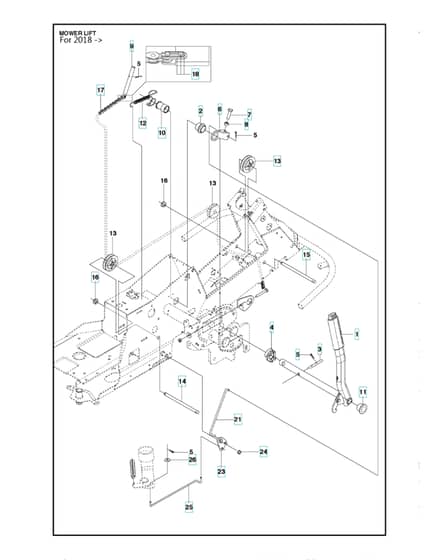

Mower Lift & Deck Lift 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV501 06 53-01 Out of stock	Lifting Lever Assy	£169.93 £141.61
2	HV588 92 69-01 Out of stock	Bearing	£6.61 £5.51
3	HV525 40 66-01 Out of stock	Pen	£10.93 £9.11
4	HV588 92 71-01 Out of stock	Anvil	£5.24 £4.37
5	HV721 61 83-01 Out of stock	Split Pin	£0.66 £0.55
6	HV588 92 70-01 Out of stock	Lifting Arm	£10.26 £8.55
7	HV725 24 97-51 Out of stock	Screw	£6.61 £5.51
9	HV588 92 74-01 Out of stock	Rod	£13.21 £11.01
10	HV588 92 73-01 Out of stock	Anvil	£9.62 £8.02
11	HV584 87 13-01 Out of stock	Bearing	£6.05 £5.04
12	HV588 92 75-01 In stock	Spring	£10.52 £8.77
13	HV506 90 56-01 Out of stock	Offset Pulley	£22.33 £18.61
14	HV582 87 19-01 Out of stock	Shaft	£18.73 £15.61
15	HV582 87 19-02 Out of stock	Shaft	£18.52 £15.43
16	HV735 31 18-20 Out of stock	E-Clip	£0.68 £0.57
17	HV506 55 46-09 Out of stock	Chain	£50.75 £42.29
18	HV506 55 47-01 In stock	Linkage	£4.48 £3.73
23	HV544 37 86-01 Out of stock	Link	£8.62 £7.18
24	HV735 31 14-20 Out of stock	E-Clip	£0.66 £0.55
25	HV544 44 88-01 Out of stock	Connection Rod	£8.94 £7.45
26	HV734 11 64-41 Out of stock	Washer	£3.20 £2.67
