Husqvarna R 316TXS AWD - 44" 112cm Cutting Deck 2

Description

Husqvarna R 316TXS AWD

Model Year -

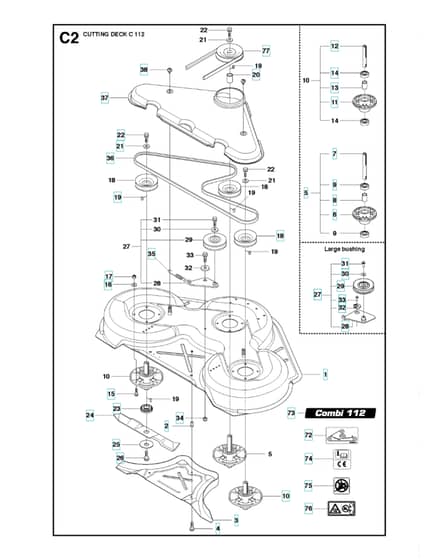

44" 112cm Cutting Deck 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV574 20 95-01 Out of stock	Cutting Deck	£492.84 £410.70
2	HV506 91 62-01 Out of stock	Nut	£5.82 £4.85
3	HV544 44 93-01 In stock	Plug	£117.48 £97.90
4	HV506 57 01-04 Out of stock	Screw Ehhfm	£4.98 £4.15
5	HV576 38 41-01 Out of stock	Blade Housing Assy	£138.00 £115.00
10	HV576 38 41-02 Out of stock	Blade Housing Assy	£124.44 £103.70
11	HV576 38 42-01 Out of stock	Bearing Housing	£68.28 £56.90
12	HV576 38 43-02 Out of stock	Shaft	£31.52 £26.27
13	HV576 38 44-01 Out of stock	Spacing Sleeve	£10.93 £9.11
14	HV738 23 04-34 Out of stock	Ball Bearing	£9.67 £8.06
15	HV535 42 38-01 Out of stock	Screw Rsqm	£4.98 £4.15
16	HV734 11 64-01 Out of stock	Washer	£2.33 £1.94
18	HV506 92 21-01 Out of stock	Pulley	£37.19 £30.99
19	HV506 53 35-01 Out of stock	Parallel Key	£4.22 £3.52
20	HV544 06 80-02 Out of stock	Spacing Sleeve	£15.47 £12.89
21	HV734 11 74-41 Out of stock	Washer	£4.67 £3.89
23	HV535 50 42-02 Out of stock	Adapter	£22.20 £18.50
24	HV504 18 81-10 Out of stock	Blade	£45.25 £37.71
26	HV544 11 41-01 Out of stock	Screw Ehhm	£1.72 £1.43
27	HV586 96 66-01 Out of stock	Belt Tensioner Assylarge Bushing	£71.40 £59.50
28	HV585 35 99-01 Out of stock	Armlarge Bushing	£27.61 £23.01
29	HV506 53 27-01 Out of stock	Pulley	£55.90 £46.58
30	HV734 11 64-41 Out of stock	Washer	£3.37 £2.81
31	HV586 32 04-01 Out of stock	Screwlarge Bushing	£2.52 £2.10
32	HV505 45 17-01 In stock	Washerlarge Bushing	£13.97 £11.64
33	HV725 64 53-01 Out of stock	Screw Ihcsfmlarge Bushing	£1.15 £0.96
33	HV725 24 51-71 Out of stock	Screw Ehhmsmall Bushing	£4.43 £3.69
34	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
35	HV506 53 31-01 In stock	Spring	£12.28 £10.23
37	HV544 09 62-01 Out of stock	Belt Cover	£59.00 £49.17
38	HV544 40 05-01 Out of stock	Screw	£2.81 £2.34
72	HV506 78 97-01 Out of stock	Label	£5.04 £4.20
73	HV544 23 81-05 Out of stock	Label	£3.40 £2.83
74	HV506 92 90-01 Out of stock	Label	£2.93 £2.44
75	HV535 43 74-01 Out of stock	Label Warning	£3.76 £3.13
76	HV574 51 00-01 Out of stock	Decal	£3.08 £2.57
77	HV506 77 86-01 In stock	Pulley	Was £75.24 £62.70 Special Price £55.28 £46.07
