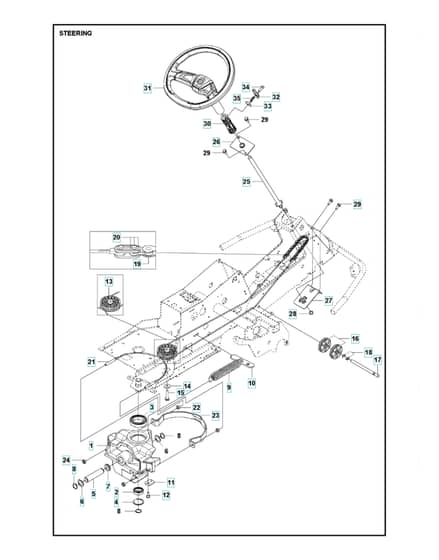

Husqvarna R 316TX - Steering

Husqvarna R 316TX - Steering

Description

Husqvarna R 316TX

Model Year -

Steering - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV577 65 93-01 Out of stock	Spindle		£222.91 £185.76
	2		HV738 21 05-04 Out of stock	Ball Bearing		£9.38 £7.82
	3		HV738 21 10-04 Out of stock	Ball Bearing		£9.38 £7.82
	4		HV735 31 40-10 Out of stock	Circlip		£5.51 £4.59
	5		HV506 98 59-01 Out of stock	Swing Axle		£49.80 £41.50
	6		HV506 77 34-01 Out of stock	Washer		£3.92 £3.27
	7		HV740 68 14-21 Out of stock	V-Ring		£4.80 £4.00
	8		HV735 31 26-00 Out of stock	Circlip		£0.73 £0.61
	9		HV506 67 19-01 Out of stock	Spring		£32.44 £27.03
	10		HV590 73 54-01 Out of stock	Spring Retainer		£12.68 £10.57
	11		HV506 67 08-01 Out of stock	Link		£9.30 £7.75
	12		HV506 59 74-01 Out of stock	Screw Ehhfm		£5.72 £4.77
	13		HV576 49 25-01 Out of stock	Pulley		£70.56 £58.80
	14		HV734 11 74-41 Out of stock	Washer		£4.38 £3.65
	15		HV506 67 54-03 Out of stock	Screw Ehhfm		£5.99 £4.99
	16		HV506 52 24-01 Out of stock	Starter Pulley		£9.40 £7.83
	17		HV506 53 94-04 Out of stock	Shaft		£19.40 £16.17
	18		HV735 31 14-20 Out of stock	E-Clip		£0.66 £0.55
	19		HV506 55 46-01 Out of stock	Chain		£20.00 £16.67
	20		HV506 55 47-01 In stock	Linkage		£4.48 £3.73
	21		HV501 60 48-04 In stock	Cable Assy		£20.50 £17.08
	24		HV732 21 20-01 Out of stock	Lock Nut		£4.51 £3.76
	27		HV583 89 97-01 Out of stock	Bracket		£20.48 £17.07
	28		HV735 31 17-00 In stock	Circlip		£0.68 £0.57
	29		HV506 57 01-04 Out of stock	Screw Ehhfm		£4.70 £3.92
	30		HV587 08 09-01 Out of stock	Driver		£10.96 £9.13
	33		HV593 60 52-01 Out of stock	Fixing Plate		£6.01 £5.01
	34		HV593 14 94-01 Out of stock	Pin		£2.26 £1.88
	35		HV593 86 88-01 Out of stock	Spring		£2.87 £2.39

Description

Husqvarna R 316TX

Model Year -

Steering - Parts Diagram
