R 316TX - Ride On Mower Parts
Husqvarna R 316TX - Chassis Rear 2

Husqvarna R 316TX - Chassis Rear 2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

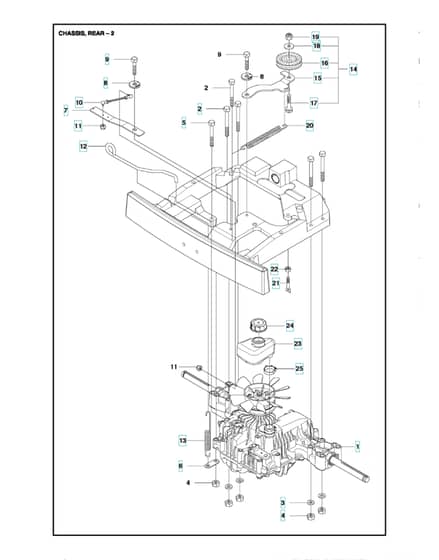

Husqvarna R 316TX - Chassis Rear 2

Husqvarna R 316TX - Chassis Rear 2

Description

Husqvarna R 316TX

Model Year -

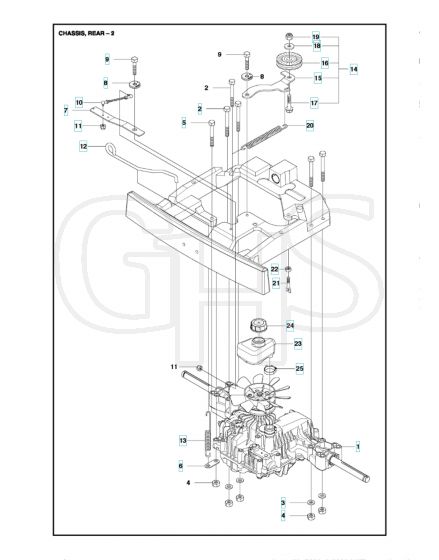

Chassis Rear 2 - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV506 98 63-01 Out of stock	Transmission		£1,175.88 £979.90
	2		HV725 24 67-51 Out of stock	Screw Ehhm		£6.84 £5.70
	3		HV734 11 64-01 Out of stock	Washer		£2.20 £1.83
	4		HV731 23 18-01 Out of stock	Hexagon Nut		£2.99 £2.49
	5		HV725 24 62-51 Out of stock	Screw Ehhm		£6.25 £5.21
	7		HV579 59 68-01 Out of stock	Lever		£17.33 £14.44
	8		HV584 28 86-04 Out of stock	Washer		£3.17 £2.64
	9		HV725 24 51-71 Out of stock	Screw Ehhm		£4.20 £3.50
	10		HV506 98 75-01 Out of stock	Adjustment Rod		£14.69 £12.24
	11		HV732 21 14-01 Out of stock	Lock Nut		£1.22 £1.02
	12		HV506 98 82-01 Out of stock	Frikopplingsstång		£12.14 £10.12
	13		HV506 83 43-01 Out of stock	Spring		£3.67 £3.06
	14		HV506 98 84-01 Out of stock	Belt Tensioner Assy		£77.21 £64.34
	16		HV506 94 69-01 Out of stock	Pulley		£35.94 £29.95
	17		HV725 24 55-71 Out of stock	Screw Ehhm		£3.08 £2.57
	18		HV734 11 64-41 Out of stock	Washer		£3.20 £2.67
	19		HV732 21 18-01 In stock	Lock Nut		£2.33 £1.94
	20		HV506 98 86-01 In stock	Spring		£4.26 £3.55
	21		HV506 98 88-01 Out of stock	Pendulum		£7.50 £6.25
	23		HV506 98 90-01 Out of stock	Expansion Tank		£34.46 £28.72
	25		HV505 13 11-02 Out of stock	Hose Clamp		£5.33 £4.44

Description

Husqvarna R 316TX

Model Year -

Chassis Rear 2 - Parts Diagram
