Husqvarna R 316TX - Attatchments

Name: Husqvarna R 316TX - Attatchments
SKU: r_316tx_attatchments-group
Price: 0.85 GBP
Availability: InStock

Description

Husqvarna R 316TX

Model Year -

Attatchments - Parts Diagram

	Part No.	Details

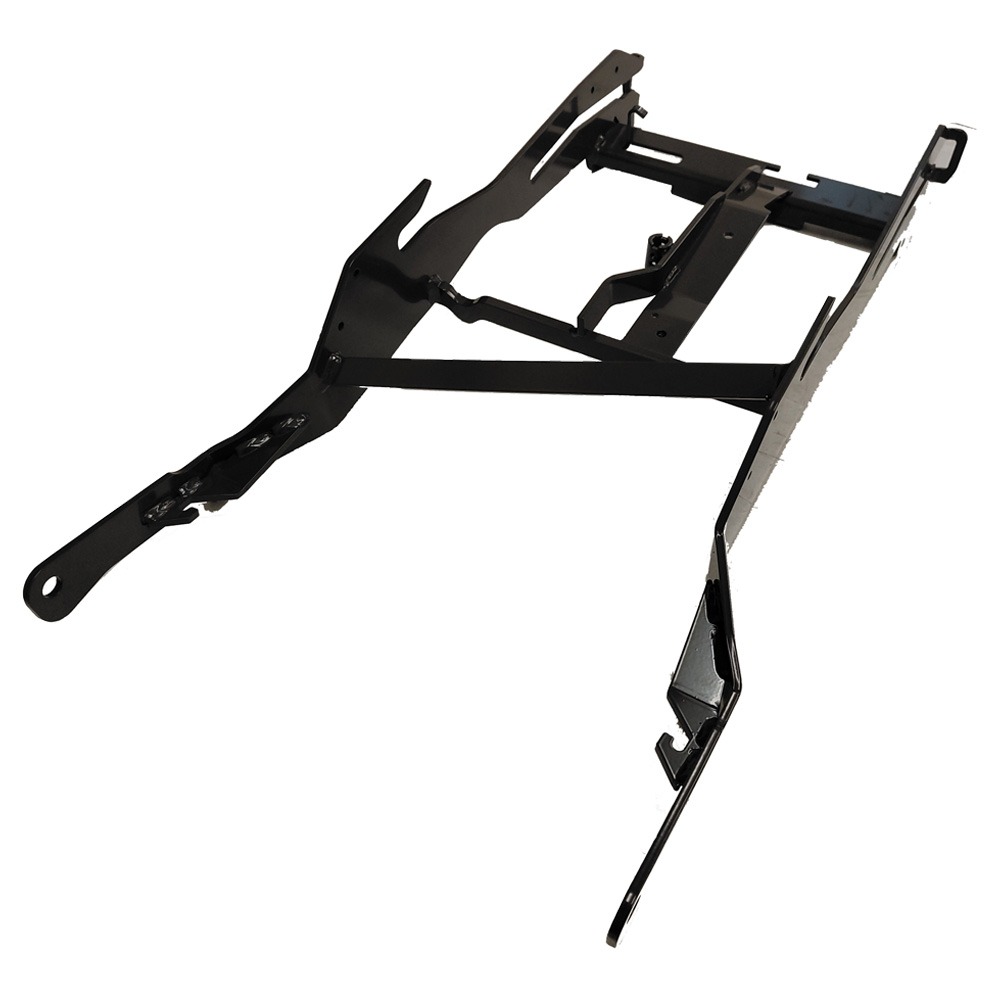

1	HV523 06 42-03	Equipment Frame	Out of stock	£271.08 £225.90
2	HV525 47 59-01	Hook	Out of stock	£23.35 £19.46
5	HV506 59 74-01	Screw Ehhfm	In stock	£6.35 £5.29
8	HV581 76 52-01	Washer	Out of stock	£3.62 £3.02
10	HV506 53 56-03	Draw Spring	Out of stock	£5.95 £4.96
11	HV525 48 67-01	Belt Guide	Out of stock	£6.97 £5.81
12	HV506 97 48-01	Pulley	Out of stock	£56.32 £46.93
13	HV506 82 68-02	Bushing	Out of stock	£14.32 £11.93
16	HV577 22 87-01	Sheet	Out of stock	£19.92 £16.60
20	HV734 11 64-41	Washer	Out of stock	£3.37 £2.81
21	HV725 24 59-51	Screw Ehhm	Out of stock	£6.35 £5.29
22	HV504 62 24-01	Spring	Out of stock	£12.28 £10.23
23	HV504 62 21-02	Handle Assy	Out of stock	£17.62 £14.68
25	HV725 64 53-01	Screw Ihcsfm	Out of stock	£1.15 £0.96
27	HV732 21 18-01	Lock Nut	In stock	£2.33 £1.94
30	HV506 89 58-01	Collar Screw	Out of stock	£8.66 £7.22
31	HV732 25 22-01	Hexagon Locking Nut	Out of stock	£5.78 £4.82
32	HV506 96 66-01	Hair Pin Cotter	Out of stock	£1.02 £0.85
33	HV506 83 76-01	Spring	Out of stock	£35.98 £29.98
34	HV506 83 77-01	Ring Bolt	Out of stock	£12.43 £10.36
35	HV734 11 72-01	Washer	Out of stock	£2.02 £1.68
