Description

Husqvarna R 316TS AWD

Model Year -

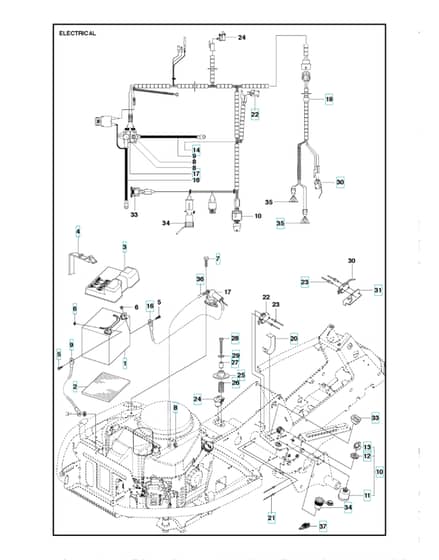

Electrical - Parts Diagram

Ref. Img. Part No. Details
  1 Battery
Battery
HV577 04 16-01 Out of stock
Battery
£112.02 £93.35

  2 Battery Mat
Battery Mat
HV535 44 11-01 Out of stock
Battery Mat
£26.30 £21.92

  3 Cover
Cover
HV578 20 06-01 Out of stock
Cover
£32.24 £26.87

  4 Belt
Belt
HV506 83 68-02 Out of stock
Belt
£2.24 £1.87

  7 Screw Ehhft
Screw Ehhft
HV725 23 64-61 Out of stock
Screw Ehhft
£2.40 £2.00

  9 Cable
Cable
HV576 18 39-01 Out of stock
Cable
£10.46 £8.72

  10 Ignition Switch
Ignition Switch
HV579 43 43-01 Out of stock
Ignition Switch
£34.34 £28.62

  11 Ignition Switch
Ignition Switch
HV578 26 17-01 Out of stock
Ignition Switch
£27.82 £23.18

  12 Nut
Nut
HV544 44 23-01 Out of stock
Nut
£1.43 £1.19

  13 Ignition Key
Ignition Key
HV544 44 24-01 Out of stock
Ignition Key
£9.90 £8.25

  14 Wiring
Wiring
HV578 33 85-01 Out of stock
Wiring
£79.97 £66.64

  17 Relay
Relay
HV544 43 98-01 Out of stock
Relay
£17.83 £14.86

  20 Plate Spring
Plate Spring
HV506 90 93-01 Out of stock
Plate Spring
£5.77 £4.81

  21 Blind Rivet
Blind Rivet
HV722 78 39-02 Out of stock
Blind Rivet
£2.82 £2.35

  22 Switch
Switch
HV574 31 60-01 Out of stock
Switch
£13.61 £11.34

  23 Rivet
Rivet
HV544 44 07-01 Out of stock
Rivet
£2.82 £2.35

  24 Switch
Switch
HV506 90 96-01 Out of stock
Switch
£16.03 £13.36

  25 Spring Washer
Spring Washer
HV506 90 97-01 Out of stock
Spring Washer
£13.96 £11.63

  26 Spring
Spring
HV544 44 12-01 Out of stock
Spring
£4.27 £3.56

  27 Spacing Tube
Spacing Tube
HV506 90 99-02 Out of stock
Spacing Tube
£5.59 £4.66

  29 Washer
Washer
HV734 11 64-01 Out of stock
Washer
£2.20 £1.83

  30 Switch
Switch
HV574 31 61-01 Out of stock
Switch
£16.27 £13.56

  31 Bracket
Bracket
HV544 41 57-01 Out of stock
Bracket
£7.10 £5.92

  34 Power Socket
Power Socket
HV535 47 48-01 Out of stock
Power Socket
£41.12 £34.27

  35 Lamp
Lamp
HV582 21 42-01 Out of stock
Lamp
£11.40 £9.50

  36 Cable
Cable
HV576 18 38-01 Out of stock
Cable
£18.61 £15.51

  37 Lever
Lever
HV586 37 94-01 Out of stock
Lever
£1.01 £0.84
