Husqvarna R 316T - Transmission 2

Husqvarna R 316T - Transmission 2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 316T - Transmission 2

Husqvarna R 316T - Transmission 2

Description

Husqvarna R 316T

Model Year -

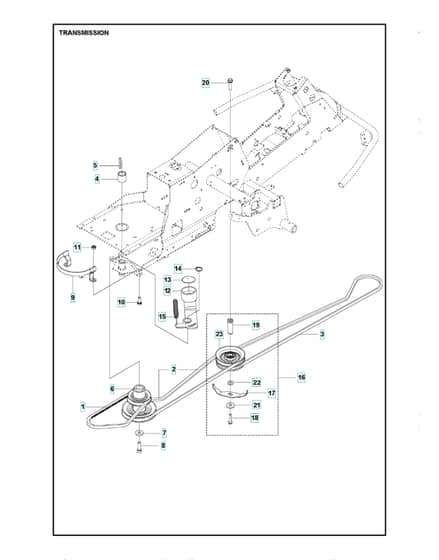

Transmission 2 - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV589 53 12-01 In stock	Belt		£29.23 £24.36
	2		HV599 67 59-02 In stock	Belt		£44.93 £37.44
	3		HV594 97 80-01 In stock	Belt		£56.54 £47.12
	4		HV506 50 92-01 Out of stock	Spacing Sleeve		£9.91 £8.26
	5		HV506 55 59-01 Out of stock	Wedge		£4.57 £3.81
	6		HV535 48 24-01 Out of stock	Pulley		£98.16 £81.80
	8		HV506 55 60-02 Out of stock	Screw Unc		£7.40 £6.17
	9		HV587 42 52-01 Out of stock	Belt Guidefor 967291601		£21.36 £17.80
	9		HV506 66 45-01 Out of stock	Belt Guidefor 966757501. 9671518-01		£18.64 £15.53
	10		HV725 24 93-71 Out of stock	Screw Ehhm		£6.60 £5.50
	11		HV732 21 20-51 Out of stock	Nut		£4.51 £3.76
	12		HV535 48 44-01 Out of stock	Belt Tensioner Assy		£46.08 £38.40
	14		HV735 31 26-00 Out of stock	Circlip		£0.76 £0.63
	15		HV506 66 56-01 In stock	Spring		£14.36 £11.97
	17		HV544 40 53-01 Out of stock	Belt Guide		£10.82 £9.02
	18		HV506 57 01-05 Out of stock	Screw Ehhfmfor 966757501. 9671518-01		£0.83 £0.69
	18		HV586 32 04-01 Out of stock	Screwfor 967291601		£2.52 £2.10
	19		HV581 91 64-01 Out of stock	Shaft		£25.12 £20.93
	20		HV506 67 54-02 In stock	Screw Ehhfm		£6.83 £5.69
	21		HV506 59 75-01 Out of stock	Washerfor 966757501. 9671518-01		£9.30 £7.75
	22		HV506 77 57-01 Out of stock	Washerfor 966757501. 9671518-01		£5.69 £4.74
	22		HV586 32 02-01 Out of stock	Distancefor 967291601		£6.82 £5.68
	23		HV535 48 22-01 Out of stock	Pulley		£82.92 £69.10

Description

Husqvarna R 316T

Model Year -

Transmission 2 - Parts Diagram
