Husqvarna R 316T AWD - Transmission 2

Husqvarna R 316T AWD - Transmission 2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R 316T AWD - Transmission 2

Husqvarna R 316T AWD - Transmission 2

Description

Husqvarna R 316T AWD

Model Year -

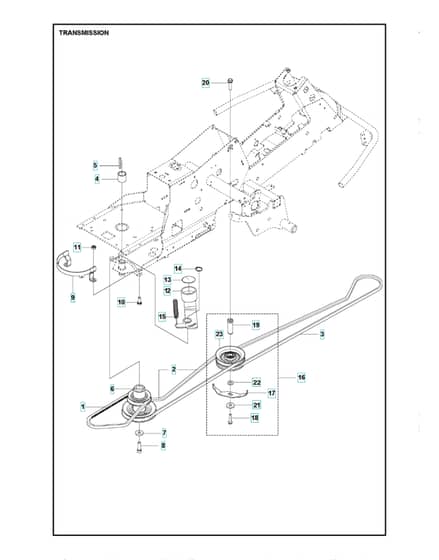

Transmission 2 - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV589 53 12-01 In stock	Belt		£27.79 £23.16
	2		HV599 67 59-02 In stock	Belt		£44.93 £37.44
	3		HV594 97 80-01 In stock	Belt		£54.66 £45.55
	4		HV506 50 92-01 Out of stock	Spacing Sleeve		£9.66 £8.05
	5		HV506 55 59-01 Out of stock	Wedge		£4.54 £3.78
	6		HV535 48 24-01 Out of stock	Pulley		£103.06 £85.88
	8		HV506 55 60-02 Out of stock	Screw Unc		£7.22 £6.02
	9		HV587 42 52-01 Out of stock	Belt Guidefor 967291701 - 2017		£20.23 £16.86
	9		HV506 66 45-01 Out of stock	Belt Guidefor 967291701 - 2015. 966757601 & 967151901		£17.65 £14.71
	10		HV725 24 93-71 Out of stock	Screw Ehhm		£6.10 £5.08
	11		HV732 21 20-51 In stock	Nut		£4.51 £3.76
	12		HV535 48 44-01 Out of stock	Belt Tensioner Assy		£46.08 £38.40
	14		HV735 31 26-00 Out of stock	Circlip		£0.73 £0.61
	15		HV506 66 56-01 In stock	Spring		£14.05 £11.71
	17		HV544 40 53-01 Out of stock	Belt Guide		£10.22 £8.52
	18		HV506 57 01-05 Out of stock	Screw Ehhfmfor 967291701 - 2015. 966757601 & 967151901		£0.80 £0.67
	18		HV586 32 04-01 Out of stock	Screw		£2.46 £2.05
	19		HV581 91 64-01 Out of stock	Shaft		£24.83 £20.69
	20		HV506 67 54-02 In stock	Screw Ehhfm		£6.49 £5.41
	21		HV506 77 57-01 Out of stock	Washerfor 967291701 - 2015. 966757601 & 967151901		£5.39 £4.49
	22		HV586 32 02-01 Out of stock	Distancefor 967291701 - 2017		£6.66 £5.55
	22		HV506 59 75-01 Out of stock	Washerfor 967291701 - 2015. 966757601 & 967151901		£8.56 £7.13
	23		HV535 48 22-01 Out of stock	Pulley		£82.92 £69.10

Description

Husqvarna R 316T AWD

Model Year -

Transmission 2 - Parts Diagram
