Husqvarna R 316T AWD

Model Year -

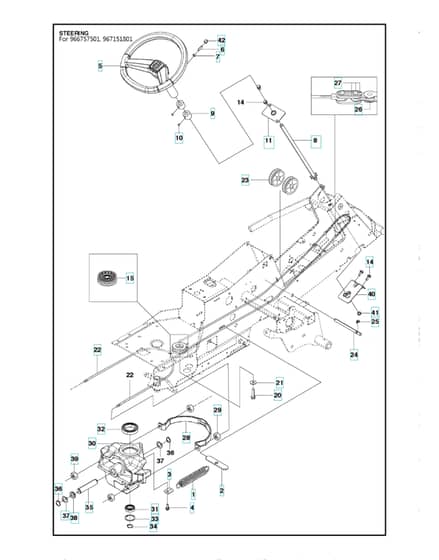

Steering - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV506 67 19-01 Out of stock	Spring	£34.26 £28.55
2	HV506 57 63-01 In stock	Spring Retainer	£13.40 £11.17
3	HV506 67 08-01 Out of stock	Link	£9.84 £8.20
4	HV506 59 74-01 Out of stock	Screw Ehhfm	£6.35 £5.29
5	HV577 96 04-01 Out of stock	Steering Wheel	£93.12 £77.60
6	HV728 74 55-05 Out of stock	Screw Ihsetm	£2.71 £2.26
7	HV731 23 18-01 Out of stock	Hexagon Nut	£3.16 £2.63
8	HV583 90 88-01 Out of stock	Steering Rod	£69.84 £58.20
10	HV728 84 43-05 Out of stock	Screw Ihsetm	£1.39 £1.16
11	HV584 15 56-01 Out of stock	Bracket	£12.30 £10.25
14	HV506 57 01-04 Out of stock	Screw Ehhfm	£4.98 £4.15
15	HV576 49 25-01 Out of stock	Pulley	£69.12 £57.60
20	HV506 67 54-03 Out of stock	Screw Ehhfm	£6.14 £5.12
21	HV734 11 74-41 Out of stock	Washer	£4.67 £3.89
23	HV506 52 24-01 Out of stock	Starter Pulley	£9.65 £8.04
25	HV735 31 14-20 Out of stock	E-Clip	£0.67 £0.56
26	HV506 55 46-01 Out of stock	Chain	£21.16 £17.63
27	HV506 55 47-01 In stock	Linkage	£4.96 £4.13
30	HV577 65 93-01 Out of stock	Spindle	£204.12 £170.10
31	HV738 21 05-04 Out of stock	Ball Bearing	£9.92 £8.27
32	HV738 21 10-04 Out of stock	Ball Bearing	£9.92 £8.27
33	HV735 31 40-10 Out of stock	Circlip	£5.65 £4.71
35	HV506 98 59-01 Out of stock	Swing Axle	£52.60 £43.83
36	HV735 31 26-00 Out of stock	Circlip	£0.76 £0.63
37	HV506 77 34-01 Out of stock	Washer	£4.02 £3.35
38	HV740 68 14-21 Out of stock	V-Ring	£4.91 £4.09
39	HV732 21 20-51 In stock	Nut	£4.51 £3.76
40	HV583 89 97-01 Out of stock	Bracket	£20.48 £17.07
41	HV735 31 17-00 In stock	Circlip	£0.66 £0.55
42	HV544 43 32-01 Out of stock	Protective Cover	£4.72 £3.93
