Husqvarna R 316T AWD

Model Year -

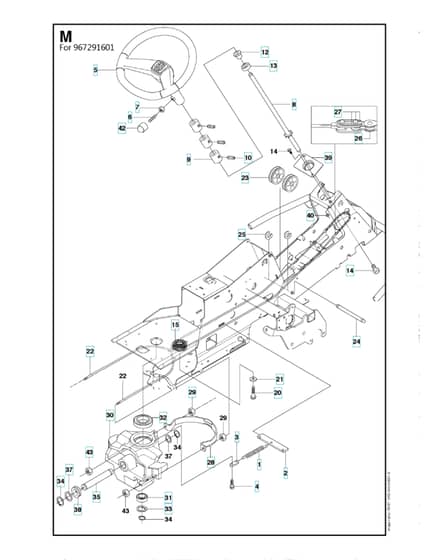

Steering 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV506 67 19-01 Out of stock	Spring	£32.44 £27.03
2	HV506 57 63-01 In stock	Spring Retainer	£12.68 £10.57
3	HV506 67 08-01 Out of stock	Link	£9.30 £7.75
4	HV506 59 74-01 Out of stock	Screw Ehhfm	£5.72 £4.77
5	HV577 96 04-01 Out of stock	Steering Wheel	£97.86 £81.55
6	HV728 74 55-05 Out of stock	Screw Ihsetm	£2.64 £2.20
7	HV731 23 18-01 Out of stock	Hexagon Nut	£2.99 £2.49
8	HV575 63 22-01 Out of stock	Steering Rod	£92.83 £77.36
10	HV728 84 43-05 Out of stock	Screw Ihsetm	£1.36 £1.13
12	HV506 88 78-01 Out of stock	Spacer	£7.30 £6.08
13	HV738 21 04-04 Out of stock	Ball Bearing	£8.00 £6.67
14	HV506 57 01-04 Out of stock	Screw Ehhfm	£4.70 £3.92
15	HV576 49 25-01 Out of stock	Pulley	£70.56 £58.80
20	HV506 67 54-03 Out of stock	Screw Ehhfm	£5.99 £4.99
21	HV734 11 74-41 Out of stock	Washer	£4.38 £3.65
23	HV506 52 24-01 Out of stock	Starter Pulley	£9.40 £7.83
24	HV506 53 94-04 Out of stock	Shaft	£19.40 £16.17
25	HV735 31 14-20 Out of stock	E-Clip	£0.66 £0.55
26	HV506 55 46-01 Out of stock	Chain	£20.00 £16.67
27	HV506 55 47-01 In stock	Linkage	£4.48 £3.73
29	HV731 23 20-01 Out of stock	Hexagon Nut	£2.96 £2.47
30	HV577 65 93-01 Out of stock	Spindle	£222.91 £185.76
31	HV738 21 05-04 Out of stock	Ball Bearing	£9.38 £7.82
32	HV738 21 10-04 Out of stock	Ball Bearing	£9.38 £7.82
33	HV735 31 40-10 Out of stock	Circlip	£5.51 £4.59
34	HV735 31 26-00 Out of stock	Circlip	£0.73 £0.61
35	HV506 98 59-01 Out of stock	Swing Axle	£49.80 £41.50
37	HV506 77 34-01 Out of stock	Washer	£3.92 £3.27
38	HV740 68 14-21 Out of stock	V-Ring	£4.80 £4.00
39	HV578 06 52-01 Out of stock	Bracket	£13.60 £11.33
42	HV544 43 32-01 Out of stock	Protective Cover	£4.60 £3.83
43	HV732 21 20-51 In stock	Nut	£4.51 £3.76
