Husqvarna R 316T AWD - Mower Lift & Deck Lift 2

Description

Husqvarna R 316T AWD

Model Year -

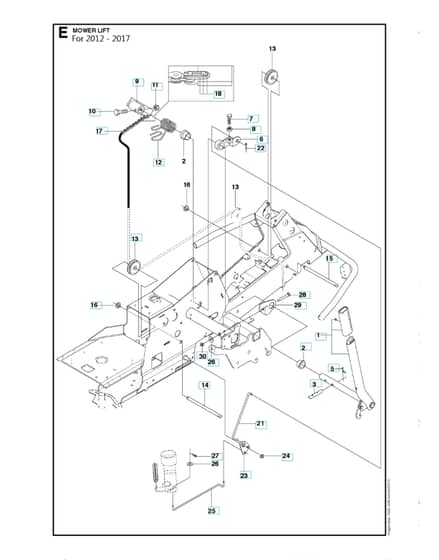

Mower Lift & Deck Lift 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV577 96 67-01 Out of stock	Lifting Lever Assy	£66.54 £55.45
3	HV525 40 66-01 Out of stock	Pen	£10.93 £9.11
6	HV506 78 43-01 Out of stock	Link Assy	£11.58 £9.65
7	HV725 24 97-51 Out of stock	Screw	£6.61 £5.51
8	HV731 23 20-01 Out of stock	Hexagon Nut	£2.96 £2.47
9	HV544 43 36-01 Out of stock	Lifting Arm	£22.58 £18.82
10	HV725 25 42-51 Out of stock	Screw Ehhm	£8.03 £6.69
11	HV732 25 22-01 Out of stock	Hexagon Locking Nut	£5.63 £4.69
12	HV506 91 68-01 Out of stock	Spring	£7.70 £6.42
13	HV506 90 56-01 Out of stock	Offset Pulley	£22.33 £18.61
14	HV506 90 57-01 Out of stock	Shaft	£18.73 £15.61
15	HV506 90 57-02 Out of stock	Shaft	£19.40 £16.17
16	HV735 31 18-20 Out of stock	E-Clip	£0.68 £0.57
17	HV506 55 46-07 Out of stock	Chain	£49.42 £41.18
18	HV506 55 47-01 In stock	Linkage	£4.48 £3.73
23	HV544 37 86-01 Out of stock	Link	£8.62 £7.18
24	HV735 31 14-20 Out of stock	E-Clip	£0.66 £0.55
25	HV544 44 88-01 Out of stock	Connection Rod	£8.94 £7.45
26	HV734 11 64-41 Out of stock	Washer	£3.20 £2.67
27	HV721 61 83-01 Out of stock	Split Pin	£0.66 £0.55
28	HV535 42 38-03 Out of stock	Screw Rsqm	£6.37 £5.31
30	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
