Husqvarna R 215TX - 103cm Cutting Deck 2

Description

Husqvarna R 215TX

Model Year -

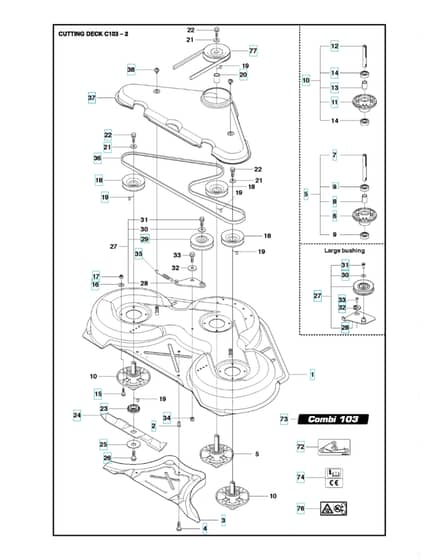

103cm Cutting Deck 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV504 56 98-05 Out of stock	Deck Shell Assy	£631.08 £525.90
2	HV506 91 62-01 Out of stock	Nut	£5.66 £4.72
3	HV544 44 92-01 Out of stock	Plug	£105.48 £87.90
4	HV506 57 01-04 Out of stock	Screw Ehhfm	£4.70 £3.92
5	HV576 38 41-03 Out of stock	Blade Housing Assy	£140.68 £117.23
10	HV576 38 41-02 Out of stock	Blade Housing Assy	£126.91 £105.76
11	HV576 38 42-01 Out of stock	Bearing Housing	£71.76 £59.80
12	HV576 38 43-02 Out of stock	Shaft	£30.73 £25.61
13	HV576 38 44-01 Out of stock	Spacing Sleeve	£10.64 £8.87
14	HV738 23 04-34 Out of stock	Ball Bearing	£9.16 £7.63
15	HV535 42 38-01 Out of stock	Screw Rsqm	£4.70 £3.92
16	HV734 11 64-01 Out of stock	Washer	£2.20 £1.83
18	HV506 92 21-01 Out of stock	Pulley	£35.17 £29.31
19	HV506 53 35-01 In stock	Parallel Key	£4.20 £3.50
20	HV544 06 80-03 Out of stock	Spacing Sleeve	£13.67 £11.39
21	HV734 11 74-41 Out of stock	Washer	£4.38 £3.65
23	HV535 50 42-02 Out of stock	Adapter	£21.96 £18.30
24	HV504 18 82-10 In stock	Blade	£39.90 £33.25
26	HV544 11 41-01 Out of stock	Screw Ehhm	£1.63 £1.36
27	HV586 96 40-01 In stock	Belt Tensioner Assylarge Bushing	£39.49 £32.91
28	HV585 35 99-01 Out of stock	Armlarge Bushing	£26.93 £22.44
29	HV506 53 27-01 Out of stock	Pulleyfor 967150801. 966757201	£55.90 £46.58
30	HV734 11 64-41 Out of stock	Washer	£3.20 £2.67
31	HV586 32 04-01 Out of stock	Screwlarge Bushing	£2.46 £2.05
31	HV506 55 83-02 Out of stock	Screw Ehhftsmall Bushing	£3.43 £2.86
32	HV586 49 67-01 Out of stock	Washerlarge Bushing	£3.64 £3.03
33	HV725 24 51-71 Out of stock	Screw Ehhmsmall Bushing	£4.20 £3.50
33	HV725 64 53-01 Out of stock	Screw Ihcsfmlarge Bushing	£1.13 £0.94
34	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
35	HV506 53 31-01 In stock	Spring	£11.11 £9.26
36	HV589 53 06-01 In stock	Belt	£49.86 £41.55
37	HV585 07 07-01 Out of stock	Belt Coverfor 967291301	£40.82 £34.02
37	HV544 09 61-01 Out of stock	Belt Coverfor 967150801. 966757201	£55.52 £46.27
38	HV544 40 05-01 Out of stock	Screw	£2.64 £2.20
72	HV506 78 97-01 Out of stock	Label	£4.74 £3.95
73	HV544 23 81-03 Out of stock	Label	£3.88 £3.23
74	HV506 92 90-01 Out of stock	Label	£2.87 £2.39
76	HV574 51 00-01 Out of stock	Decal	£2.90 £2.42
77	HV506 77 86-01 In stock	Pulley	Was £75.24 £62.70 Special Price £55.28 £46.07
