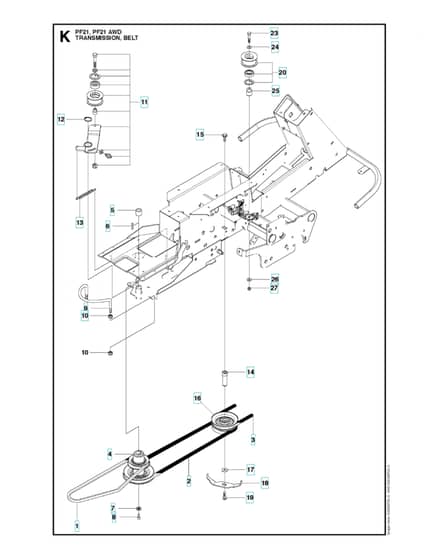

Husqvarna PROFLEX 21 AWD - Transmission

Husqvarna PROFLEX 21 AWD - Transmission

Description

Husqvarna PROFLEX 21 AWD

Model Year - 2011-03

Transmission - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	2		HV589 53 29-01 Out of stock	Belt		£39.97 £33.31
	3		HV589 53 11-01 Out of stock	Belt		£52.98 £44.15
	4		HV535 48 24-01 Out of stock	Pulley		£98.16 £81.80
	5		HV506 50 92-01 Out of stock	Spacing Sleeve		£9.91 £8.26
	6		HV506 55 59-01 Out of stock	Wedge		£4.57 £3.81
	7		HV506 59 75-01 Out of stock	Washer		£9.30 £7.75
	8		HV506 55 60-02 Out of stock	Screw Unc		£7.40 £6.17
	9		HV506 66 45-01 Out of stock	Belt Guide		£18.64 £15.53
	10		HV731 23 20-01 Out of stock	Hexagon Nut		£3.04 £2.53
	11		HV535 48 44-02 Out of stock	Belt Tensioner Assy		£57.62 £48.02
	12		HV735 31 26-00 Out of stock	Circlip		£0.76 £0.63
	13		HV506 66 56-01 In stock	Spring		£14.36 £11.97
	15		HV506 67 54-02 In stock	Screw Ehhfm		£6.83 £5.69
	16		HV535 48 22-01 Out of stock	Pulley		£82.92 £69.10
	17		HV506 77 57-01 Out of stock	Washer		£5.69 £4.74
	18		HV544 40 53-01 Out of stock	Belt Guide		£10.82 £9.02
	19		HV506 57 01-05 Out of stock	Screw Ehhfm		£0.83 £0.69
	20		HV505 15 39-01 Out of stock	Belt Tensioner Wheel Assy		£72.48 £60.40
	23		HV725 24 61-51 Out of stock	Screw Ehhm		£6.25 £5.21
	24		HV734 11 64-41 Out of stock	Washer		£3.37 £2.81
	25		HV544 00 29-01 Out of stock	Bushing		£40.78 £33.98
	26		HV734 11 64-01 Out of stock	Washer		£2.33 £1.94
	27		HV732 21 18-01 In stock	Lock Nut		£2.33 £1.94

Description

Husqvarna PROFLEX 21 AWD

Model Year - 2011-03

Transmission - Parts Diagram
