Husqvarna PROFLEX 21 AWD - Height Adjustment

Description

Husqvarna PROFLEX 21 AWD

Model Year - 2011-03

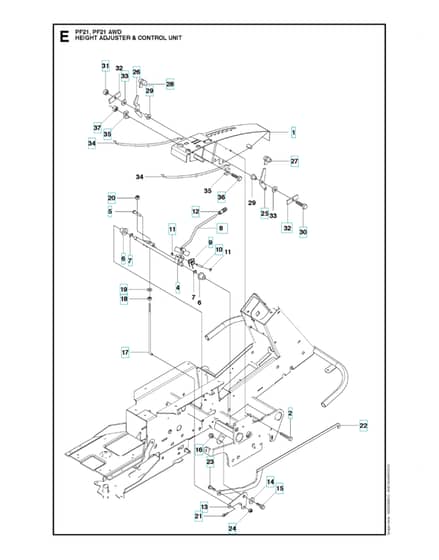

Height Adjustment - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV535 47 54-01 Out of stock	Control Plate	£137.18 £114.32
2	HV725 24 51-71 Out of stock	Screw Ehhm	£4.20 £3.50
4	HV506 78 45-02 Out of stock	Control Lever	£28.20 £23.50
7	HV735 31 22-20 Out of stock	E-Clip	£0.77 £0.64
8	HV506 78 47-01 Out of stock	Reglerspak Kpl.	£48.98 £40.82
9	HV506 53 14-01 Out of stock	Spring	£5.51 £4.59
11	HV735 31 09-20 Out of stock	E-Clip	£0.62 £0.52
13	HV502 63 63-01 Out of stock	Link	£13.60 £11.33
15	HV725 24 53-71 Out of stock	Screw Ehhm	£4.20 £3.50
17	HV506 85 45-01 Out of stock	Height Rod	£16.66 £13.88
19	HV734 11 72-01 Out of stock	Washer	£1.87 £1.56
20	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
21	HV721 61 83-01 Out of stock	Split Pin	£0.66 £0.55
22	HV502 63 64-02 Out of stock	Connector	£66.37 £55.31
23	HV506 59 74-01 Out of stock	Screw Ehhfm	£5.72 £4.77
24	HV731 23 18-01 Out of stock	Hexagon Nut	£2.99 £2.49
25	HV506 86 59-03 Out of stock	Control	£16.96 £14.13
27	HV506 88 91-01 Out of stock	Knob	£5.65 £4.71
28	HV506 88 91-02 Out of stock	Knob	£6.25 £5.21
30	HV725 23 74-71 Out of stock	Screw Ehhm	£2.64 £2.20
31	HV732 21 16-01 Out of stock	Lock Nut	£1.66 £1.38
32	HV506 92 85-02 Out of stock	Lockwasher	£1.42 £1.18
33	HV506 83 94-01 Out of stock	Spring Washer	£2.69 £2.24
35	HV506 50 82-01 Out of stock	Clip	£0.92 £0.77
36	HV725 23 35-51 Out of stock	Screw Ehhm	£2.20 £1.83
37	HV732 21 14-01 Out of stock	Lock Nut	£1.22 £1.02
