Husqvarna PROFLEX 21 AWD - Chassis & Enclosures

Husqvarna PROFLEX 21 AWD - Chassis & Enclosures
Husqvarna PROFLEX 21 AWD - Chassis & Enclosures

Description

Husqvarna PROFLEX 21 AWD

Model Year - 2011-03

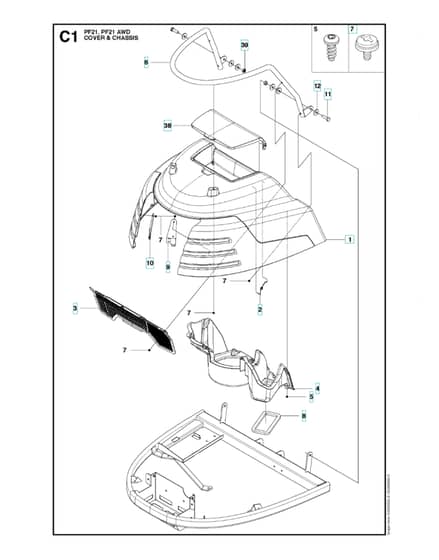

Chassis & Enclosures - Parts Diagram

Ref. Img. Part No. Details
  2 Spring
Spring
HV504 12 41-01 Out of stock
Spring
£3.31 £2.76

  3 Grid
Grid
HV502 48 22-01 Out of stock
Grid
£22.76 £18.97

  6 Load Carrier
Load Carrier
HV502 49 46-01 Out of stock
Load Carrier
£125.89 £104.91

  7 Screw
Screw
HV544 40 05-01 Out of stock
Screw
£2.64 £2.20

  9 Guide Plate
Guide Plate
HV504 61 39-01 Out of stock
Guide Plate
£21.16 £17.63

  10 Guide Plate
Guide Plate
HV504 61 39-02 Out of stock
Guide Plate
£21.16 £17.63

  11 Screw
Screw
HV725 24 97-51 Out of stock
Screw
£6.61 £5.51

  12 Washer
Washer
HV734 11 74-60 Out of stock
Washer
£2.46 £2.05

  38 Lid
Lid
HV504 10 14-01 Out of stock
Lid
£27.85 £23.21

  39 Nut
Nut
HV732 21 20-51 In stock
Nut
£4.51 £3.76


Description

Husqvarna PROFLEX 21 AWD

Model Year - 2011-03

Chassis & Enclosures - Parts Diagram
