Husqvarna PROFLEX 21 AWD - 103cm Cutting Deck 3

Name: Husqvarna PROFLEX 21 AWD - 103cm Cutting Deck 3
SKU: proflex_21_awd_2011_03_103cm_cutting_deck_3-group
Price: 1.83 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna PROFLEX 21 AWD - 103cm Cutting Deck 3

Description

Husqvarna PROFLEX 21 AWD

Model Year - 2011-03

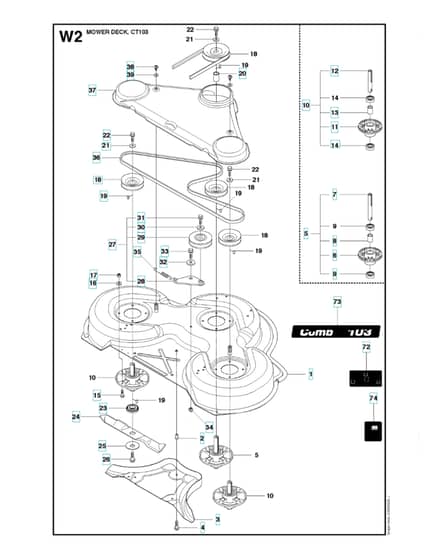

103cm Cutting Deck 3 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV506 91 62-01 Out of stock	Nut	£5.66 £4.72
3	HV544 44 92-01 Out of stock	Plug	£105.48 £87.90
4	HV506 57 01-04 Out of stock	Screw Ehhfm	£4.70 £3.92
7	HV535 42 87-01 Out of stock	Shaft	£38.38 £31.98
12	HV535 42 87-02 Out of stock	Shaft	£65.69 £54.74
14	HV738 22 05-19 Out of stock	Ball Bearing	£8.94 £7.45
15	HV535 42 38-01 Out of stock	Screw Rsqm	£4.70 £3.92
16	HV734 11 64-01 Out of stock	Washer	£2.20 £1.83
18	HV535 42 90-01 Out of stock	Pulley	£76.48 £63.73
19	HV506 53 35-01 Out of stock	Parallel Key	£4.20 £3.50
20	HV535 42 88-01 Out of stock	Spacer	£8.53 £7.11
21	HV535 42 92-01 Out of stock	Washer	£8.92 £7.43
23	HV535 50 42-01 Out of stock	Adapter	£17.95 £14.96
24	HV504 19 04-10 Out of stock	Blade	£39.77 £33.14
25	HV506 79 23-02 Out of stock	Knife Plate	£13.57 £11.31
26	HV725 25 42-51 Out of stock	Screw Ehhm	£8.03 £6.69
29	HV506 53 27-01 Out of stock	Pulley	£55.90 £46.58
30	HV734 11 64-41 Out of stock	Washer	£3.20 £2.67
31	HV506 55 83-02 Out of stock	Screw Ehhft	£3.43 £2.86
33	HV725 24 51-71 Out of stock	Screw Ehhm	£4.20 £3.50
34	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
35	HV506 53 31-01 In stock	Spring	£11.11 £9.26
36	HV589 53 44-01 Out of stock	Belt	£47.86 £39.88
37	HV544 09 61-01 Out of stock	Belt Cover	£55.52 £46.27
38	HV506 98 26-01 Out of stock	Screw	£2.40 £2.00
39	HV506 55 97-01 Out of stock	Washer	£2.69 £2.24
72	HV506 78 97-01 Out of stock	Label	£4.74 £3.95
73	HV544 23 81-11 Out of stock	Label	£4.72 £3.93
74	HV506 92 90-01 Out of stock	Label	£2.87 £2.39
