Husqvarna PROFLEX 21 AWD - 103cm Cutting Deck 2

Name: Husqvarna PROFLEX 21 AWD - 103cm Cutting Deck 2
SKU: proflex_21_awd_2011_03_103cm_cutting_deck_2-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna PROFLEX 21 AWD - 103cm Cutting Deck 2

Description

Husqvarna PROFLEX 21 AWD

Model Year - 2011-03

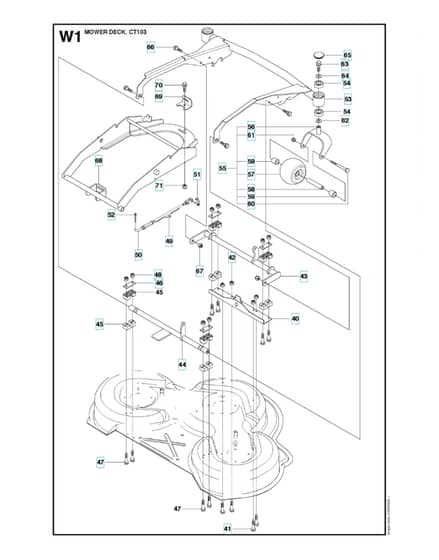

103cm Cutting Deck 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
43	HV502 64 18-02 Out of stock	Cross Bar	£56.75 £47.29
44	HV502 64 19-02 Out of stock	Cross Bar	£60.85 £50.71
45	HV506 86 96-01 Out of stock	Bearing	£7.70 £6.42
46	HV506 81 38-01 Out of stock	Reinforcing Plate	£6.28 £5.23
47	HV725 24 61-51 Out of stock	Screw Ehhm	£6.10 £5.08
49	HV504 81 27-01 Out of stock	Parallel Rod Assy	£90.98 £75.82
50	HV502 64 23-01 Out of stock	Parallel Rod	£16.14 £13.45
51	HV506 83 98-03 Out of stock	Bolt	£5.99 £4.99
52	HV721 61 83-01 Out of stock	Split Pin	£0.66 £0.55
54	HV738 21 04-04 Out of stock	Ball Bearing	£8.00 £6.67
55	HV535 50 59-01 Out of stock	Pivothjul	£142.64 £118.87
56	HV535 50 46-01 Out of stock	Fork	£43.28 £36.07
57	HV506 96 30-01 Out of stock	Wheel Assy	£81.90 £68.25
58	HV506 81 08-02 Out of stock	Tube	£11.40 £9.50
59	HV506 87 41-02 Out of stock	Spacer	£7.67 £6.39
60	HV725 25 19-51 Out of stock	Screw Ehhm	£10.58 £8.82
61	HV732 21 20-51 In stock	Nut	£4.51 £3.76
62	HV506 50 48-05 Out of stock	Washer	£2.93 £2.44
63	HV506 57 01-04 Out of stock	Screw Ehhfm	£4.70 £3.92
64	HV734 11 64-41 Out of stock	Washer	£3.20 £2.67
65	HV544 01 70-01 Out of stock	Hub Cap	£4.27 £3.56
66	HV506 59 74-01 Out of stock	Screw Ehhfm	£5.72 £4.77
68	HV502 63 95-01 Out of stock	Deck Attachment	£189.07 £157.56
69	HV502 64 24-01 Out of stock	Lock	£8.81 £7.34
70	HV725 24 51-71 Out of stock	Screw Ehhm	£4.20 £3.50
71	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
