Husqvarna PROFLEX 20 - Controls

Name: Husqvarna PROFLEX 20 - Controls
SKU: proflex_20_2000_03_controls-group
Price: 0.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna PROFLEX 20

Model Year - 2000-03

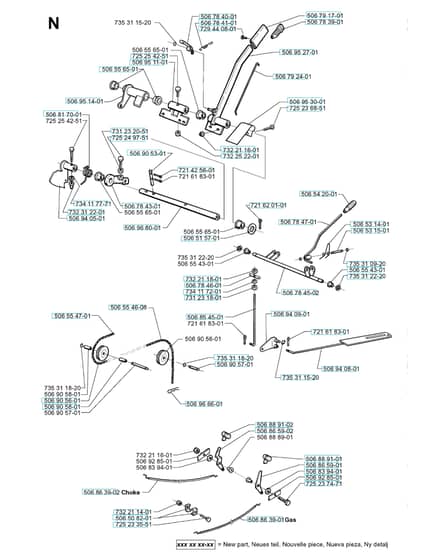

Controls - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
506	HV506 83 94-01 Out of stock	Spring Washer	£2.69 £2.24
506	HV506 88 91-01 Out of stock	Knob	£5.65 £4.71
506	HV506 90 57-01 Out of stock	Shaft	£18.73 £15.61
506	HV506 94 08-01 Out of stock	Connector	£58.87 £49.06
506	HV506 95 14-01 Out of stock	Actuator	£30.05 £25.04
506	HV506 53 14-01 Out of stock	Spring	£5.51 £4.59
506	HV506 78 39-01 Out of stock	Button	£11.62 £9.68
506	HV506 78 45-02 Out of stock	Control Lever	£28.20 £23.50
506	HV506 79 24-01 Out of stock	Thread	£14.90 £12.42
506	HV506 85 45-01 Out of stock	Height Rod	£16.66 £13.88
506	HV506 88 91-02 Out of stock	Knob	£6.25 £5.21
506	HV506 90 58-01 Out of stock	Tube Sleeve	£12.79 £10.66
506	HV506 94 09-01 Out of stock	Länkplåt Kpl.	£102.10 £85.08
506	HV506 96 66-01 Out of stock	Hair Pin Cotter	£0.98 £0.82
506	HV506 50 82-01 Out of stock	Clip	£0.92 £0.77
506	HV506 55 46-08 Out of stock	Chain	£53.06 £44.22
506	HV506 78 41-01 Out of stock	Spring	£3.43 £2.86
506	HV506 78 47-01 Out of stock	Reglerspak Kpl.	£48.98 £40.82
506	HV506 81 70-01 Out of stock	Spring	£6.80 £5.67
506	HV506 86 39-01 Out of stock	Throttle Cable Assygas	£26.78 £22.32
506	HV506 90 56-01 Out of stock	Offset Pulley	£22.33 £18.61
506	HV506 94 05-01 Out of stock	Lifting Arm	£45.04 £37.53
506	HV506 95 11-01 Out of stock	Driver Assy	£107.52 £89.60
506	HV506 96 80-01 Out of stock	Shaft	£68.92 £57.43
506	HV506 51 57-01 Out of stock	Washer	£4.38 £3.65
506	HV506 55 47-01 In stock	Linkage	£4.48 £3.73
506	HV506 78 43-01 Out of stock	Link Assy	£11.58 £9.65
506	HV506 79 17-01 Out of stock	Handle	£9.74 £8.12
721	HV721 61 83-01 Out of stock	Split Pin	£0.66 £0.55
725	HV725 23 74-71 Out of stock	Screw Ehhm	£2.64 £2.20
725	HV725 23 35-51 Out of stock	Screw Ehhm	£2.20 £1.83
725	HV725 24 97-51 Out of stock	Screw	£6.61 £5.51
725	HV725 23 68-51 Out of stock	Screw	£2.14 £1.78
725	HV725 25 42-51 Out of stock	Screw Ehhm	£8.03 £6.69
729	HV729 44 08-01 Out of stock	Screw Slcsrt	£1.36 £1.13
731	HV731 23 18-01 Out of stock	Hexagon Nut	£2.99 £2.49
731	HV731 23 20-01 Out of stock	Hexagon Nut	£2.96 £2.47
732	HV732 21 14-01 Out of stock	Lock Nut	£1.22 £1.02
732	HV732 25 22-01 Out of stock	Hexagon Locking Nut	£5.63 £4.69
732	HV732 21 16-01 Out of stock	Lock Nut	£1.66 £1.38
732	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
734	HV734 11 72-01 Out of stock	Washer	£1.87 £1.56
734	HV734 11 77-71 Out of stock	Washer	£2.46 £2.05
735	HV735 31 18-20 Out of stock	E-Clip	£0.68 £0.57
735	HV735 31 09-20 Out of stock	E-Clip	£0.62 £0.52
735	HV735 31 22-20 Out of stock	E-Clip	£0.77 £0.64
735	HV735 31 15-20 Out of stock	E-Clip	£0.68 £0.57
