Husqvarna PR 17 - Frame

Husqvarna PR 17 - Frame
Husqvarna PR 17 - Frame

Description

Husqvarna PR 17

Model Year -

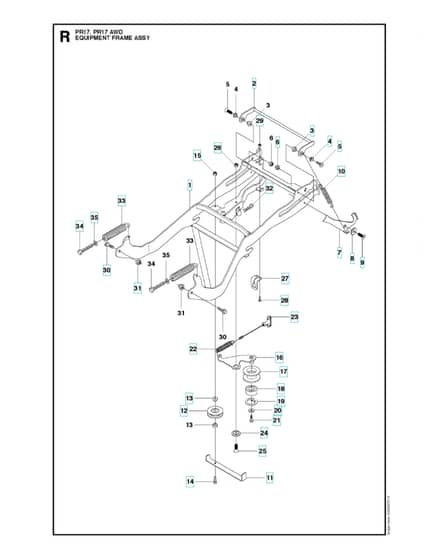

Frame - Parts Diagram

Ref. Img. Part No. Details
  2 Hook
Hook
HV504 55 78-01 Out of stock
Hook
£24.74 £20.62

  5 Screw Ihcsfm
Screw Ihcsfm
HV725 64 59-01 Out of stock
Screw Ihcsfm
£3.14 £2.62

  8 Washer
Washer
HV506 91 87-01 Out of stock
Washer
£6.84 £5.70

  10 Draw Spring
Draw Spring
HV506 53 56-03 Out of stock
Draw Spring
£5.63 £4.69

  12 Pulley Assy
Pulley Assy
HV544 00 46-01 In stock
Pulley Assy
£50.75 £42.29

  13 Bushing
Bushing
HV544 00 34-01 Out of stock
Bushing
£17.75 £14.79

  16 Belt Tensioner
Belt Tensioner
HV504 62 19-01 Out of stock
Belt Tensioner
£23.11 £19.26

  18 Ball Bearing
Ball Bearing
HV738 21 04-04 Out of stock
Ball Bearing
£8.00 £6.67

  19 Circlip
Circlip
HV735 31 38-10 Out of stock
Circlip
£0.80 £0.67

  20 Washer
Washer
HV734 11 64-41 Out of stock
Washer
£3.20 £2.67

  21 Screw Ehhft
Screw Ehhft
HV506 55 83-02 Out of stock
Screw Ehhft
£3.43 £2.86

  22 Spring
Spring
HV504 62 24-01 Out of stock
Spring
£11.11 £9.26

  23 Handle Assy
Handle Assy
HV504 62 21-01 Out of stock
Handle Assy
£18.72 £15.60

  25 Screw Ihcsfm
Screw Ihcsfm
HV725 64 53-01 Out of stock
Screw Ihcsfm
£1.13 £0.94

  26 Lock Nut
Lock Nut
HV732 21 18-01 In stock
Lock Nut
£2.33 £1.94

  27 Guide
Guide
HV504 62 17-01 Out of stock
Guide
£11.34 £9.45

  28 Screw Ehhm
Screw Ehhm
HV725 23 68-71 Out of stock
Screw Ehhm
£2.14 £1.78

  29 Lock Nut
Lock Nut
HV732 21 16-01 Out of stock
Lock Nut
£1.66 £1.38

  30 Collar Screw
Collar Screw
HV506 89 58-01 Out of stock
Collar Screw
£8.45 £7.04

  31 Hexagon Locking Nut
Hexagon Locking Nut
HV732 25 22-01 Out of stock
Hexagon Locking Nut
£5.63 £4.69

  32 Hair Pin Cotter
Hair Pin Cotter
HV506 96 66-01 Out of stock
Hair Pin Cotter
£0.98 £0.82

  33 Spring
Spring
HV505 41 87-01 Out of stock
Spring
£36.24 £30.20

  34 Screw Ehhm
Screw Ehhm
HV725 25 15-71 Out of stock
Screw Ehhm
£9.04 £7.53

  35 Washer
Washer
HV734 11 72-01 Out of stock
Washer
£1.87 £1.56


Description

Husqvarna PR 17

Model Year -

Frame - Parts Diagram
