Husqvarna PR 17 AWD - Transmission Front

Name: Husqvarna PR 17 AWD - Transmission Front
SKU: pr_17_awd_transmission_front-group
Price: 0.67 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna PR 17 AWD - Transmission Front

Description

Husqvarna PR 17 AWD

Model Year -

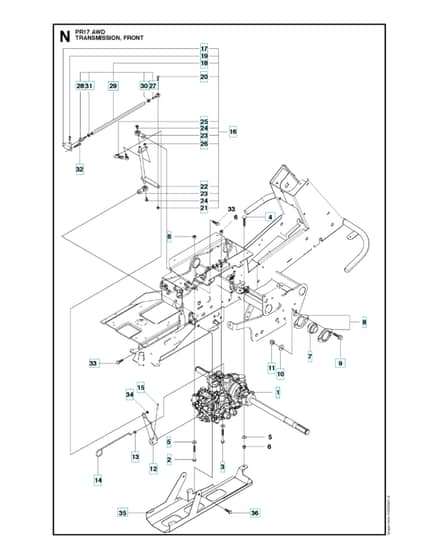

Transmission Front - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV577 53 20-01 Out of stock	Transmissionfor 965192301(2010). 966772701	£1,130.10 £941.75
1	HV577 60 83-01 Out of stock	Transmissionfor 965192301(2008). 965192301(2009)	£1,397.16 £1,164.30
2	HV725 24 67-51 Out of stock	Screw Ehhm	£6.84 £5.70
4	HV535 42 38-03 Out of stock	Screw Rsqm	£6.37 £5.31
7	HV544 00 89-02 Out of stock	Bearing	£82.90 £69.08
8	HV544 00 90-02 Out of stock	Bearing Housing	£26.32 £21.93
9	HV506 57 01-05 Out of stock	Screw Ehhfm	£0.80 £0.67
10	HV734 11 64-01 Out of stock	Washer	£2.20 £1.83
11	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
13	HV503 73 58-01 In stock	Bushing	£5.28 £4.40
15	HV721 43 47-01 Out of stock	Spring Pin	£1.60 £1.33
18	HV544 45 67-03 Out of stock	Rod	£87.97 £73.31
20	HV725 23 70-71 Out of stock	Screw Ehhm	£1.13 £0.94
23	HV506 95 17-01 Out of stock	Rod End	£18.22 £15.18
24	HV535 47 52-12 Out of stock	Screw Ehhfm	£3.43 £2.86
25	HV544 44 19-01 Out of stock	Adjustment Rod	£16.58 £13.82
26	HV732 25 16-01 Out of stock	Hexagon Locking Nut	£1.87 £1.56
27	HV535 48 66-01 Out of stock	Rod End	£10.43 £8.69
28	HV535 48 66-02 Out of stock	Rod End	£10.26 £8.55
29	HV535 48 65-01 Out of stock	Rodfor 965192301(2008). 965192301(2009)	£19.12 £15.93
29	HV535 48 65-03 Out of stock	Rodfor 965192301(2010). 966772701	£29.48 £24.57
30	HV731 23 16-01 Out of stock	Hexagon Nut	£1.43 £1.19
31	HV503 22 10-18 Out of stock	Hexagon Nut	£1.43 £1.19
32	HV725 23 66-51 Out of stock	Hexagonal Screw M6X12	£1.36 £1.13
33	HV725 24 93-71 Out of stock	Screw Ehhm	£6.10 £5.08
34	HV732 21 16-01 Out of stock	Lock Nut	£1.66 £1.38
36	HV506 57 01-04 Out of stock	Screw Ehhfm	£4.70 £3.92
