Husqvarna P 535HX - Chassis

Husqvarna P 535HX - Chassis

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna P 535HX - Chassis

Husqvarna P 535HX - Chassis

Description

Husqvarna P 535HX

Model Year -

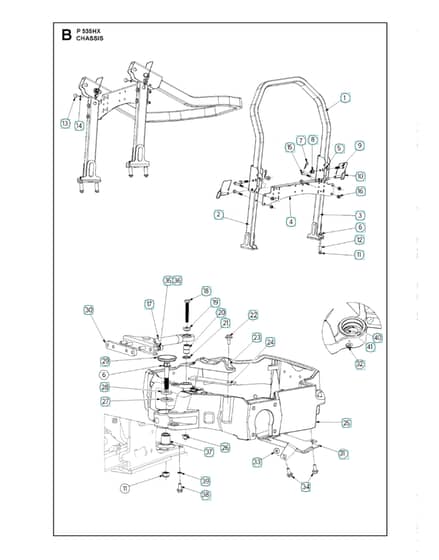

Chassis - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	4		HV577 40 61-01 Out of stock	Stiffening Plate		£126.48 £105.40
	7		HV721 68 02-51 Out of stock	Spring Cotter		£0.83 £0.69
	8		HV577 41 19-01 Out of stock	Nut Flange		£4.00 £3.33
	12		HV579 70 33-01 Out of stock	Tube Sleeve		£10.60 £8.83
	13		HV501 97 66-01 Out of stock	Antivibration Element		£12.31 £10.26
	14		HV731 23 18-01 Out of stock	Hexagon Nut		£3.16 £2.63
	15		HV576 65 48-09 Out of stock	Screw Ehhfm		£6.46 £5.38
	18		HV577 37 67-01 Out of stock	Screw Ehhm		£1.63 £1.36
	19		HV578 24 64-01 Out of stock	Sleeve		£9.83 £8.19
	20		HV583 85 47-01 Out of stock	Shaft Pivot		£13.19 £10.99
	21		HV583 86 12-01 Out of stock	Washer		£2.52 £2.10
	22		HV544 36 24-01 Out of stock	Screw		£5.92 £4.93
	23		HV585 56 30-01 Out of stock	Wear Plate		£25.70 £21.42
	24		HV576 47 42-01 Out of stock	Plate		£6.91 £5.76
	26		HV576 64 57-05 Out of stock	Nut Flange		£4.19 £3.49
	32		HV738 88 10-01 Out of stock	Lubrication Nipple		£10.60 £8.83
	34		HV506 57 01-04 Out of stock	Screw Ehhfm		£4.98 £4.15
	35		HV502 23 36-01 Out of stock	Screw Ihscm		£6.54 £5.45
	36		HV734 11 72-01 Out of stock	Washer		£2.02 £1.68
	39		HV522 44 98-01 Out of stock	Washerwasher Lock		£2.33 £1.94

Description

Husqvarna P 535HX

Model Year -

Chassis - Parts Diagram
