Husqvarna P 525D - Controls 2

Name: Husqvarna P 525D - Controls 2
SKU: p_525d_controls_2-group
Price: 0.53 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna P 525D

Model Year -

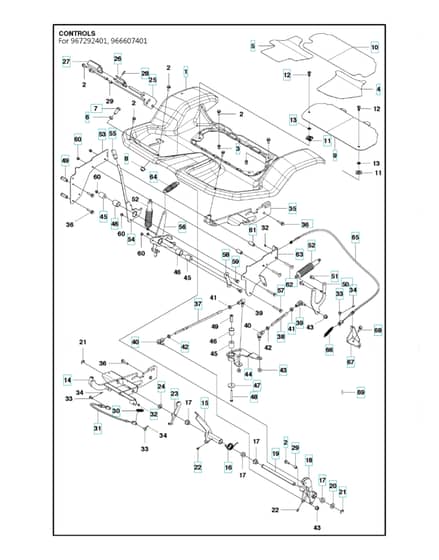

Controls 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV575 75 03-01 Out of stock	Sheet	£290.52 £242.10
2	HV506 57 01-04 Out of stock	Screw Ehhfm	£4.98 £4.15
3	HV506 91 62-01 Out of stock	Nut	£5.82 £4.85
4	HV579 42 51-01 Out of stock	Grip	£3.41 £2.84
5	HV579 42 50-01 Out of stock	Grip	£3.17 £2.64
9	HV579 41 08-01 Out of stock	Lid	£56.00 £46.67
10	HV579 42 52-01 Out of stock	Grip	£3.61 £3.01
11	HV575 88 21-01 In stock	Receptacle	£12.17 £10.14
12	HV575 88 19-01 Out of stock	Stud	£7.10 £5.92
13	HV575 88 20-01 Out of stock	Retainer	£3.83 £3.19
15	HV579 44 17-01 Out of stock	Pedal	£53.16 £44.30
16	HV576 47 51-01 Out of stock	Spring	£15.41 £12.84
18	HV586 17 50-01 Out of stock	Pedal Arm	£64.32 £53.60
20	HV734 11 86-01 Out of stock	Washer	£0.94 £0.78
21	HV735 31 18-20 Out of stock	E-Clip	£0.70 £0.58
22	HV738 88 10-01 Out of stock	Lubrication Nipple	£10.60 £8.83
23	HV586 16 95-01 Out of stock	Lever	£11.60 £9.67
24	HV734 11 78-01 Out of stock	Washer	£3.52 £2.93
25	HV579 29 68-01 Out of stock	Pedal Plate Assy	£50.45 £42.04
26	HV535 47 99-01 Out of stock	Footplate	£16.54 £13.78
28	HV721 43 09-70 Out of stock	Spring Pin	£3.38 £2.82
29	HV579 29 44-01 Out of stock	Sleeve	£5.06 £4.22
30	HV506 53 56-03 Out of stock	Draw Spring	£5.95 £4.96
31	HV576 35 22-01 Out of stock	Wire Assy	£24.31 £20.26
32	HV735 31 09-20 Out of stock	E-Clip	£0.70 £0.58
34	HV721 61 52-01 Out of stock	Split Pin	£0.64 £0.53
35	HV579 37 00-01 Out of stock	Stay	£136.80 £114.00
36	HV506 57 01-06 Out of stock	Screw Ehhfm	£6.25 £5.21
39	HV506 78 99-01 Out of stock	Vinkellänk Din 71802	£11.04 £9.20
41	HV506 89 76-01 Out of stock	Nut	£3.62 £3.02
42	HV731 23 20-01 Out of stock	Hexagon Nut	£3.04 £2.53
43	HV576 64 57-05 Out of stock	Nut Flange	£4.19 £3.49
44	HV579 44 09-01 Out of stock	Control Lever	£44.40 £37.00
50	HV579 44 89-01 Out of stock	Control Lever	£25.70 £21.42
51	HV506 57 01-03 Out of stock	Screw Ehhfm	£4.82 £4.02
52	HV506 93 83-01 Out of stock	Damping Piece	£70.44 £58.70
53	HV579 30 36-01 Out of stock	Bracket	£58.55 £48.79
54	HV579 32 54-01 Out of stock	Arm	£43.78 £36.48
55	HV521 90 35-01 Out of stock	Knob	£6.41 £5.34
56	HV579 32 55-01 Out of stock	Link Arm	£83.04 £69.20
57	HV506 57 01-07 Out of stock	Screw Ehhfm	£6.80 £5.67
58	HV579 30 38-01 Out of stock	Sheet	£11.04 £9.20
59	HV506 59 74-01 Out of stock	Screw Ehhfm	£6.35 £5.29
60	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
61	HV505 45 03-01 Out of stock	Tube	£12.30 £10.25
62	HV535 42 38-02 Out of stock	Screw Rsqm	£6.47 £5.39
63	HV579 30 37-01 Out of stock	Cover	£59.35 £49.46
64	HV579 30 40-01 Out of stock	Spring	£19.55 £16.29
65	HV579 32 87-01 Out of stock	Wire Assy	£42.76 £35.63
67	HV579 30 41-01 Out of stock	Bracket	£20.83 £17.36
68	HV506 57 01-05 Out of stock	Screw Ehhfm	£0.83 £0.69
69	HV580 66 78-01 Out of stock	Label	£3.97 £3.31
