Husqvarna P 524 - Chassis & Frame 3

Husqvarna P 524 - Chassis & Frame 3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

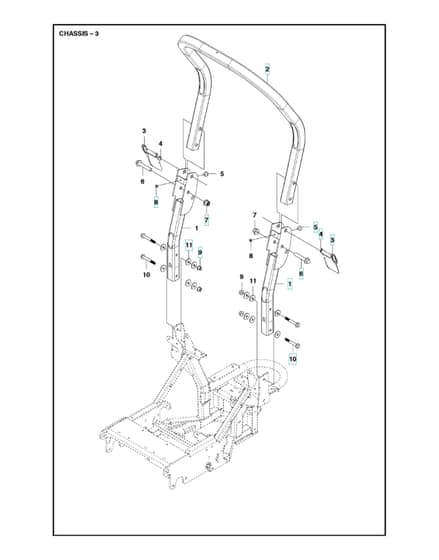

Husqvarna P 524 - Chassis & Frame 3

Husqvarna P 524 - Chassis & Frame 3

Description

Husqvarna P 524

Model Year -

Chassis & Frame 3 - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV592 96 82-01 Out of stock	Rops		£169.78 £141.48
	2		HV592 96 50-01 Out of stock	Bar		£316.54 £263.78
	3		HV574 38 80-01 Out of stock	Pin		£11.02 £9.18
	4		HV721 68 02-51 Out of stock	Spring Cotter		£0.79 £0.66
	5		HV501 97 66-01 Out of stock	Antivibration Element		£12.00 £10.00
	6		HV581 24 94-01 Out of stock	Screw Ehhfm		£10.70 £8.92
	7		HV577 41 19-01 Out of stock	Nut Flange		£3.89 £3.24
	8		HV731 23 18-01 Out of stock	Hexagon Nut		£2.99 £2.49
	10		HV576 65 48-10 Out of stock	Screw Ehhfm		£6.10 £5.08
	11		HV535 42 92-01 Out of stock	Washer		£2.69 £2.24

Description

Husqvarna P 524

Model Year -

Chassis & Frame 3 - Parts Diagram
