Husqvarna Lzc6130 - Frame

Husqvarna Lzc6130 - Frame

Description

Husqvarna Lzc6130

Model Year - 2009-06

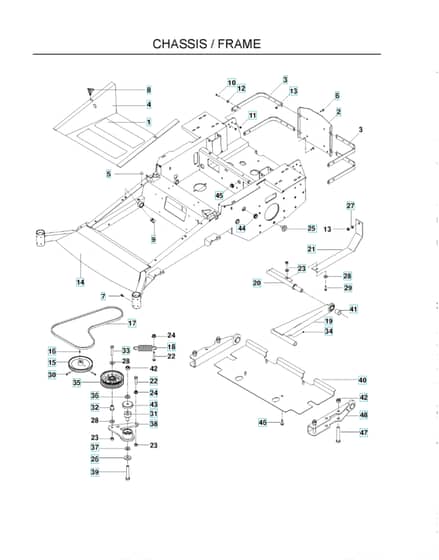

Frame - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	5		HV539 10 25-87 Out of stock	Absorber		£7.76 £6.47
	7		HV539 10 14-74 Out of stock	Nipple		£6.96 £5.80
	10		HV539 99 02-09 Out of stock	Screw		£3.37 £2.81
	11		HV539 99 07-17 Out of stock	Nut		£2.30 £1.92
	13		HV539 99 01-84 Out of stock	Nut		£2.30 £1.92
	15		HV539 10 11-76 Out of stock	Pulley		£91.34 £76.12
	17		HV510 20 15-01 Out of stock	Belt		£47.98 £39.98
	18		HV539 10 32-56 Out of stock	Spring		£23.26 £19.38
	22		HV539 99 06-55 Out of stock	Screw		£6.31 £5.26
	23		HV539 97 69-79 Out of stock	Nut		£2.78 £2.32
	25		HV539 11 90-07 Out of stock	Screw		£21.54 £17.95
	26		HV539 10 95-54 Out of stock	Wash Uss Flat 1/2		£5.63 £4.69
	28		HV539 99 05-17 Out of stock	Washer		£3.67 £3.06
	33		HV539 99 05-88 Out of stock	Screw		£6.67 £5.56
	34		HV539 97 69-98 Out of stock	Nipple		£5.66 £4.72
	35		HV539 97 66-88 Out of stock	Pulley		£59.03 £49.19
	36		HV539 99 02-50 Out of stock	Washer		£4.38 £3.65
	38		HV539 13 03-92 Out of stock	Arm		£51.79 £43.16
	39		HV539 10 15-72 Out of stock	Screw		£9.98 £8.32
	42		HV539 10 13-31 Out of stock	Nut		£5.40 £4.50
	43		HV539 11 46-62 Out of stock	Shield. Dust		£1.81 £1.51
	47		HV539 10 34-33 Out of stock	Screw		£10.26 £8.55

Description

Husqvarna Lzc6130

Model Year - 2009-06

Frame - Parts Diagram
