Husqvarna Lzc5225 - Frame

Husqvarna Lzc5225 - Frame

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lzc5225 - Frame

Husqvarna Lzc5225 - Frame

Description

Husqvarna Lzc5225

Model Year - 2009-06

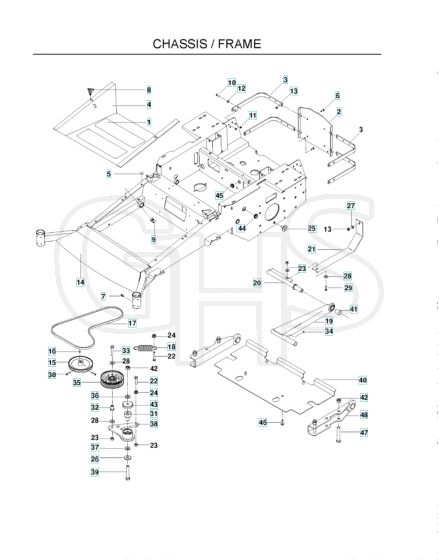

Frame - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	5		HV539 10 25-87 Out of stock	Absorber		£7.97 £6.64
	7		HV539 10 14-74 Out of stock	Nipple		£7.15 £5.96
	10		HV539 99 02-09 Out of stock	Screw		£3.46 £2.88
	11		HV539 99 07-17 Out of stock	Nut		£2.36 £1.97
	13		HV539 99 01-84 Out of stock	Nut		£2.36 £1.97
	15		HV539 10 11-76 Out of stock	Pulley		£87.00 £72.50
	17		HV510 20 15-01 Out of stock	Belt		£49.22 £41.02
	18		HV539 10 32-56 Out of stock	Spring		£23.86 £19.88
	22		HV539 99 06-55 Out of stock	Screw		£6.47 £5.39
	23		HV539 97 69-79 Out of stock	Nut		£2.84 £2.37
	25		HV539 11 90-07 Out of stock	Screw		£22.09 £18.41
	26		HV539 10 95-54 Out of stock	Wash Uss Flat 1/2		£5.78 £4.82
	28		HV539 99 05-17 Out of stock	Washer		£3.76 £3.13
	33		HV539 99 05-88 Out of stock	Screw		£6.84 £5.70
	34		HV539 97 69-98 Out of stock	Nipple		£5.82 £4.85
	35		HV539 97 66-88 Out of stock	Pulley		£60.56 £50.47
	36		HV539 99 02-50 Out of stock	Washer		£4.50 £3.75
	38		HV539 13 03-92 Out of stock	Arm		£53.14 £44.28
	39		HV539 10 15-72 Out of stock	Screw		£10.24 £8.53
	42		HV539 10 13-31 Out of stock	Nut		£5.54 £4.62
	43		HV539 11 46-62 Out of stock	Shield. Dust		£1.87 £1.56
	47		HV539 10 34-33 Out of stock	Screw		£10.54 £8.78

Description

Husqvarna Lzc5225

Model Year - 2009-06

Frame - Parts Diagram
