Husqvarna Lzc5225 - 52"/132cm Cutting Deck

Husqvarna Lzc5225 - 52"/132cm Cutting Deck
Husqvarna Lzc5225 - 52"/132cm Cutting Deck

Description

Husqvarna Lzc5225

Model Year - 2009-06

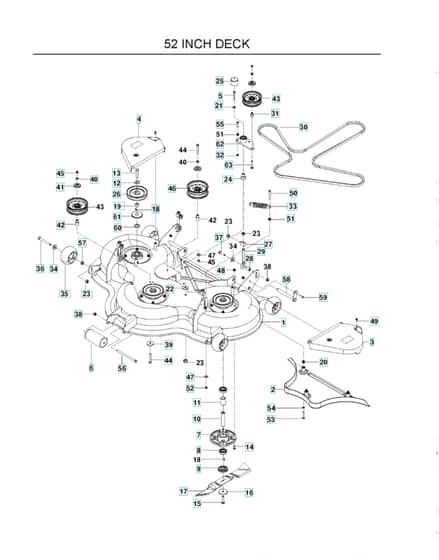

52"/132cm Cutting Deck - Parts Diagram

Ref. Img. Part No. Details
  3 Shield
Shield
HV539 11 25-08 Out of stock
Shield
£130.99 £109.16

  4 Shield
Shield
HV539 11 25-09 Out of stock
Shield
£108.83 £90.69

  5 Screw
Screw
HV539 10 15-72 Out of stock
Screw
£9.98 £8.32

  6 Roller
Roller
HV544 18 54-01 Out of stock
Roller
£69.46 £57.88

  7 Bearing Housing
Bearing Housing
HV535 42 89-01 Out of stock
Bearing Housing
£97.13 £80.94

  8 Ball Bearing
Ball Bearing
HV738 22 05-19 Out of stock
Ball Bearing
£8.94 £7.45

  9 Bushing
Bushing
HV539 13 27-78 Out of stock
Bushing
£55.74 £46.45

  10 Shaft
Shaft
HV535 42 87-02 Out of stock
Shaft
£65.69 £54.74

  11 Spacer
Spacer
HV535 42 88-01 Out of stock
Spacer
£8.53 £7.11

  13 Bolt
Bolt
HV539 13 24-79 Out of stock
Bolt
£8.45 £7.04

  14 Screw
Screw
HV539 99 02-08 Out of stock
Screw
£4.48 £3.73

  15 Bolt
Bolt
HV539 13 24-80 Out of stock
Bolt
£8.00 £6.67

  16 Knife Plate
Knife Plate
HV506 79 23-02 Out of stock
Knife Plate
£13.57 £11.31

  17 Blade
Blade
HV586 19 88-10 In stock
Blade
£47.59 £39.66

  18 Parallel Key
Parallel Key
HV506 53 35-01 Out of stock
Parallel Key
£4.20 £3.50

  19 Spacer
Spacer
HV539 11 26-09 Out of stock
Spacer
£9.38 £7.82

  23 Nut
Nut
HV539 10 13-31 Out of stock
Nut
£5.40 £4.50

  30 Belt
Belt
HV539 11 25-29 Out of stock
Belt
£150.79 £125.66

  33 Spring
Spring
HV539 10 32-56 Out of stock
Spring
£23.26 £19.38

  34 Wash Uss Flat 1/2
Wash Uss Flat 1/2
HV539 10 95-54 Out of stock
Wash Uss Flat 1/2
£5.63 £4.69

  36 Screw
Screw
HV539 10 83-66 Out of stock
Screw
£10.90 £9.08

  38 Nut
Nut
HV539 99 08-39 Out of stock
Nut
£3.85 £3.21

  39 Washer
Washer
HV539 10 65-04 Out of stock
Washer
£6.10 £5.08

  42 Bushing
Bushing
HV539 10 32-95 Out of stock
Bushing
£31.68 £26.40

  43 Pulley
Pulley
HV539 10 32-57 Out of stock
Pulley
£105.72 £88.10

  44 Screw
Screw
HV539 10 26-12 Out of stock
Screw
£7.38 £6.15

  45 Nut
Nut
HV539 97 69-79 Out of stock
Nut
£2.78 £2.32

  46 Pulley
Pulley
HV539 10 32-58 Out of stock
Pulley
£112.48 £93.73

  47 Washer
Washer
HV539 99 05-17 Out of stock
Washer
£3.67 £3.06

  48 Nut. 5/16-18. Nyloc
Nut. 5/16-18. Nyloc
HV539 11 28-99 Out of stock
Nut. 5/16-18. Nyloc
£2.54 £2.12

  49 Screw
Screw
HV539 99 03-62 Out of stock
Screw
£2.40 £2.00

  50 Screw
Screw
HV539 99 05-88 Out of stock
Screw
£6.67 £5.56

  52 Nut
Nut
HV539 20 02-82 Out of stock
Nut
£1.87 £1.56

  54 Washer
Washer
HV539 99 01-88 Out of stock
Washer
£2.42 £2.02

  56 Bolt
Bolt
HV539 13 24-70 Out of stock
Bolt
£6.64 £5.53

  57 Nut
Nut
HV539 99 02-58 Out of stock
Nut
£4.74 £3.95

  59 Screw
Screw
HV539 99 02-09 Out of stock
Screw
£3.37 £2.81

  60 Washer
Washer
HV539 12 70-99 Out of stock
Washer
£5.18 £4.32


Description

Husqvarna Lzc5225

Model Year - 2009-06

52"/132cm Cutting Deck - Parts Diagram
