Husqvarna Lz7230 Txpkoa - 72"/183cm Cutting Deck

Husqvarna Lz7230 Txpkoa - 72"/183cm Cutting Deck
Husqvarna Lz7230 Txpkoa - 72"/183cm Cutting Deck

Description

Husqvarna Lz7230 Txpkoa

Model Year - 2007-04

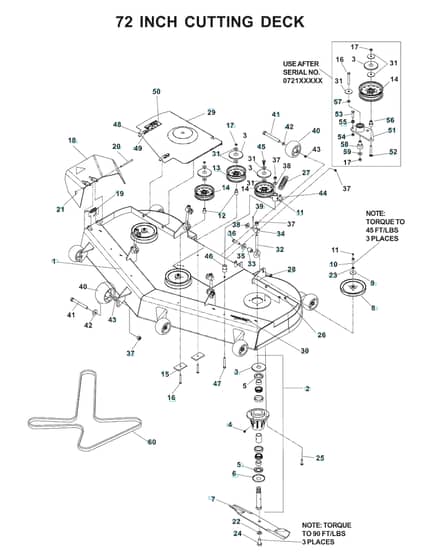

72"/183cm Cutting Deck - Parts Diagram

Ref. Img. Part No. Details
  3 Hub Cap
Hub Cap
HV539 10 84-50 Out of stock
Hub Cap
£9.30 £7.75

  4 Fitting
Fitting
HV539 97 73-26 Out of stock
Fitting
£11.82 £9.85

  5 Sealing Ring
Sealing Ring
HV539 10 87-54 Out of stock
Sealing Ring
£15.20 £12.67

  7 Blade
Blade
HV539 10 54-76 Out of stock
Blade
£59.56 £49.63

  8 Pulley
Pulley
HV539 11 21-26 Out of stock
Pulley
£78.66 £65.55

  9 Washer
Washer
HV539 10 65-04 Out of stock
Washer
£6.10 £5.08

  10 Bolt
Bolt
HV539 11 21-20 Out of stock
Bolt
£6.47 £5.39

  11 Nipple
Nipple
HV539 97 69-98 Out of stock
Nipple
£5.66 £4.72

  12 Bushing
Bushing
HV539 10 32-95 Out of stock
Bushing
£31.68 £26.40

  13 Pulley
Pulley
HV539 10 32-58 Out of stock
Pulley
£112.48 £93.73

  14 Pulley
Pulley
HV539 10 32-57 Out of stock
Pulley
£105.72 £88.10

  16 Screw
Screw
HV539 10 13-41 Out of stock
Screw
£7.52 £6.27

  17 Nut
Nut
HV539 97 69-79 Out of stock
Nut
£2.78 £2.32

  21 Pin Retaining Screw
Pin Retaining Screw
HV539 99 03-65 Out of stock
Pin Retaining Screw
£3.89 £3.24

  22 Washer
Washer
HV539 99 03-33 Out of stock
Washer
£3.76 £3.13

  23 Washer
Washer
HV539 99 02-47 Out of stock
Washer
£2.93 £2.44

  24 Screw
Screw
HV539 10 32-99 Out of stock
Screw
£9.56 £7.97

  25 Screw
Screw
HV539 99 06-27 Out of stock
Screw
£4.70 £3.92

  26 Nut
Nut
HV539 99 07-17 Out of stock
Nut
£2.30 £1.92

  27 Spring
Spring
HV539 10 51-92 Out of stock
Spring
£31.68 £26.40

  28 Nut
Nut
HV539 99 08-39 Out of stock
Nut
£3.85 £3.21

  31 Washer
Washer
HV539 11 18-97 Out of stock
Washer
£9.30 £7.75

  37 Nut
Nut
HV539 10 13-31 Out of stock
Nut
£5.40 £4.50

  38 Washer
Washer
HV539 99 05-50 Out of stock
Washer
£4.66 £3.88

  41 Bolt
Bolt
HV539 10 83-67 Out of stock
Bolt
£12.12 £10.10

  42 Wash Uss Flat 1/2
Wash Uss Flat 1/2
HV539 10 95-54 Out of stock
Wash Uss Flat 1/2
£5.63 £4.69

  43 Nut
Nut
HV539 99 02-58 Out of stock
Nut
£4.74 £3.95

  44 Lever
Lever
HV539 10 32-30 Out of stock
Lever
£114.85 £95.71

  46 Bushing
Bushing
HV539 10 34-27 Out of stock
Bushing
£23.32 £19.43

  47 Screw
Screw
HV539 10 34-33 Out of stock
Screw
£10.26 £8.55

  57 Washer
Washer
HV539 99 01-22 Out of stock
Washer
£2.69 £2.24

  58 Pivot. Bearing
Pivot. Bearing
HV539 13 02-05 Out of stock
Pivot. Bearing
£4.51 £3.76

  59 Washer
Washer
HV539 99 05-17 Out of stock
Washer
£3.67 £3.06


Description

Husqvarna Lz7230 Txpkoa

Model Year - 2007-04

72"/183cm Cutting Deck - Parts Diagram
