Husqvarna Lz6123 Tlkoa - Frame 2

Husqvarna Lz6123 Tlkoa - Frame 2

Description

Husqvarna Lz6123 Tlkoa

Model Year - 2006-04

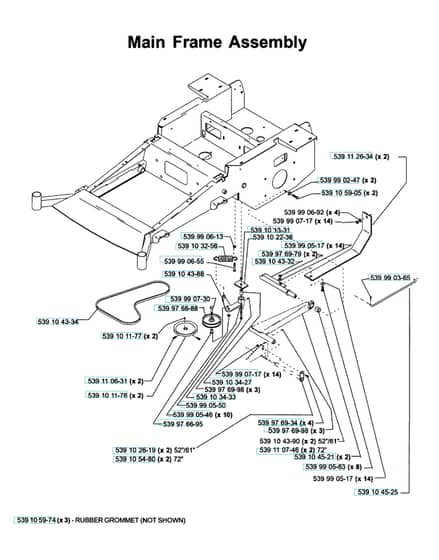

Frame 2 - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	539		HV539 10 11-76 Out of stock	Pulley		£91.34 £76.12
	539		HV539 10 34-27 Out of stock	Bushing		£23.32 £19.43
	539		HV539 97 69-34 Out of stock	Screw		£3.43 £2.86
	539		HV539 99 02-47 Out of stock	Washer		£2.93 £2.44
	539		HV539 99 05-46 Out of stock	Nut		£2.78 £2.32
	539		HV539 99 07-17 Out of stock	Nut		£2.30 £1.92
	539		HV539 10 13-31 Out of stock	Nut		£5.40 £4.50
	539		HV539 10 34-33 Out of stock	Screw		£10.26 £8.55
	539		HV539 97 69-79 Out of stock	Nut		£2.78 £2.32
	539		HV539 99 03-65 Out of stock	Pin Retaining Screw		£3.89 £3.24
	539		HV539 99 05-50 Out of stock	Washer		£4.66 £3.88
	539		HV539 10 32-56 Out of stock	Spring		£23.26 £19.38
	539		HV539 97 66-88 Out of stock	Pulley		£59.03 £49.19
	539		HV539 97 69-98 Out of stock	Nipple		£5.66 £4.72
	539		HV539 99 05-17 Out of stock	Washer		£3.67 £3.06
	539		HV539 99 06-55 Out of stock	Screw		£6.31 £5.26

Description

Husqvarna Lz6123 Tlkoa

Model Year - 2006-04

Frame 2 - Parts Diagram
