Husqvarna Lth1438 - Steering

Name: Husqvarna Lth1438 - Steering
SKU: lth1438_steering-group
Price: 0.80 GBP
Availability: InStock

Description

Husqvarna Lth1438

Model Year -

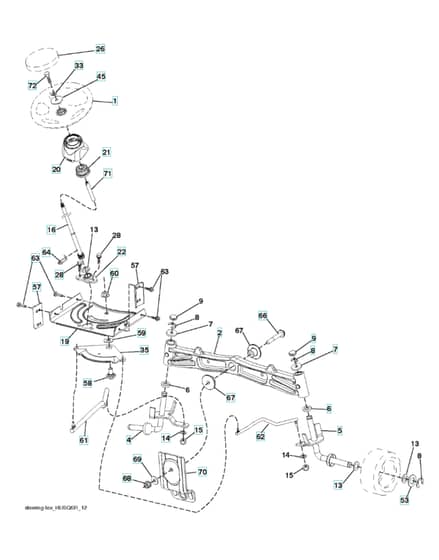

Steering - Parts Diagram

	Part No.	Details
4	HV596 87 36-01	Spindlelh	Out of stock	£67.32 £56.10
5	HV538 69 12-01	Spindlerh	Out of stock	£67.44 £56.20
7	HV532 12 17-48	Washer	Out of stock	£5.17 £4.31
8	HV812 00 00-29	Retainer Ring	Out of stock	£0.96 £0.80
9	HV532 12 12-32	Hub Cap	Out of stock	£4.82 £4.02
13	HV532 12 17-49	Washer	Out of stock	£2.78 £2.32
14	HV810 04 06-00	Washer	Out of stock	£2.52 £2.10
19	HV532 19 47-29	Plate	Out of stock	£62.28 £51.90
20	HV532 41 11-39	Steering Column Tube	Out of stock	£16.08 £13.40
28	HV817 00 06-12	Screw	Out of stock	£4.87 £4.06
33	HV810 04 05-00	Washer	Out of stock	£1.80 £1.50
35	HV532 19 47-32	Plate	Out of stock	£62.28 £51.90
45	HV819 11 38-12	Washer	Out of stock	£14.36 £11.97
53	HV532 18 89-67	Washer	Out of stock	£4.34 £3.62
58	HV532 19 47-47	Bolt	Out of stock	£10.97 £9.14
59	HV532 19 47-48	Washer	Out of stock	£4.15 £3.46
61	HV597 04 78-02	Linklh	Out of stock	£63.56 £52.97
62	HV597 04 79-02	Linkrh	Out of stock	£57.04 £47.53
64	HV532 19 98-49	Spring Retainer	Out of stock	£2.93 £2.44
66	HV871 02 07-48	Bolt	Out of stock	£7.72 £6.43
67	HV532 19 47-37	Bushing	Out of stock	£17.64 £14.70
68	HV873 90 07-00	Nut	Out of stock	£4.24 £3.53
69	HV532 19 91-62	Washer	Out of stock	£7.82 £6.52
71	HV532 19 60-75	Shaft	Out of stock	£21.96 £18.30
