Husqvarna Lth126 - Drive

Name: Husqvarna Lth126 - Drive
SKU: lth126_drive-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Lth126

Model Year -

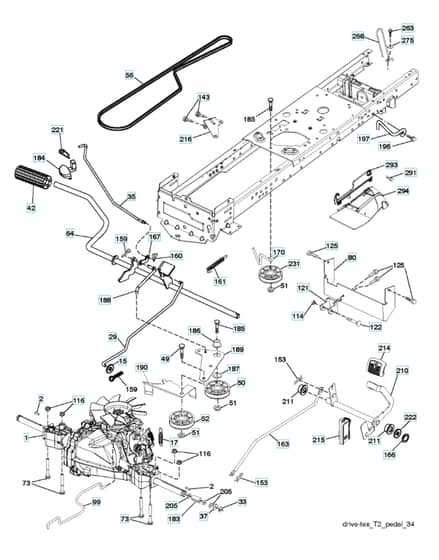

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 12 35-83 Out of stock	Key	£6.16 £5.13
33	HV812 00 00-01 Out of stock	Retainer Ring	£0.60 £0.50
35	HV532 40 10-31 Out of stock	Rod	£10.43 £8.69
37	HV532 12 17-49 Out of stock	Washer	£2.78 £2.32
49	HV872 11 06-14 Out of stock	Bolt	£5.65 £4.71
50	HV532 19 43-27 Out of stock	Pulley	£35.15 £29.29
52	HV532 19 43-26 Out of stock	Pulley	£34.79 £28.99
56	HV532 12 59-07 Out of stock	Belt	£62.87 £52.39
73	HV874 49 05-44 Out of stock	Screw	£6.47 £5.39
99	HV532 40 84-18 Out of stock	Rod	£5.40 £4.50
114	HV596 04 05-01 Out of stock	Lock Nut	£2.02 £1.68
116	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
122	HV872 01 05-20 Out of stock	Bolt	£5.65 £4.71
143	HV817 49 05-08 Out of stock	Screw	£2.96 £2.47
160	HV532 16 94-84 Out of stock	Pin	£3.89 £3.24
161	HV532 10 57-09 Out of stock	Spring	£15.65 £13.04
166	HV532 42 91-64 Out of stock	Nut	£1.42 £1.18
167	HV532 40 52-57 Out of stock	Latch	£4.74 £3.95
170	HV532 41 34-30 Out of stock	Belt Guide	£7.56 £6.30
184	HV532 44 14-07 Out of stock	Brake	£11.20 £9.33
185	HV872 11 06-22 Out of stock	Bolt	£7.48 £6.23
186	HV532 19 43-21 Out of stock	Spacer	£11.27 £9.39
188	HV532 19 43-23 Out of stock	Link	£7.91 £6.59
189	HV532 19 43-17 Out of stock	Plate	£12.12 £10.10
196	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
197	HV585 65 86-01 Out of stock	Clutch	£9.68 £8.07
205	HV532 12 17-48 Out of stock	Washer	£4.90 £4.08
210	HV532 40 09-80 Out of stock	Pedal Arm	£34.26 £28.55
211	HV532 12 01-83 Out of stock	Bearing	£5.96 £4.97
215	HV532 40 17-23 Out of stock	Pedal	£29.69 £24.74
221	HV532 40 31-87 Out of stock	Spring	£3.14 £2.62
222	HV879 21 20-10 Out of stock	Washer	£4.66 £3.88
231	HV532 40 72-87 Out of stock	Pulley	£27.44 £22.87
263	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
291	HV532 17 01-65 Out of stock	Bolt	£4.30 £3.58
294	HV532 43 03-03 Out of stock	Guard	£43.52 £36.27
