Husqvarna Lth125 - Drive

Name: Husqvarna Lth125 - Drive
SKU: lth125_2002_06_drive-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Lth125

Model Year - 2002-06

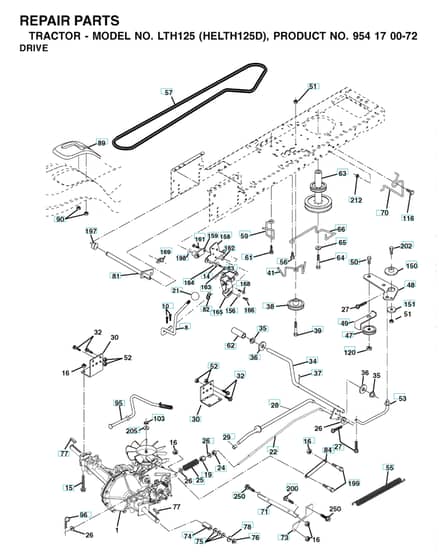

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
10	HV876 02 04-16 Out of stock	Split Pin	£1.86 £1.55
14	HV596 02 98-01 Out of stock	Washer	£2.44 £2.03
15	HV874 49 05-44 Out of stock	Screw	£6.47 £5.39
16	HV596 04 05-01 Out of stock	Lock Nut	£2.02 £1.68
21	HV532 12 12-74 Out of stock	Knob	£8.95 £7.46
28	HV532 17 57-65 Out of stock	Shaft	£10.69 £8.91
29	HV532 07 16-73 Out of stock	Cover	£2.94 £2.45
34	HV532 17 55-78 Out of stock	Shaft	£47.80 £39.83
35	HV532 12 01-83 Out of stock	Bearing	£5.96 £4.97
36	HV819 21 16-16 Out of stock	Washer	£2.36 £1.97
38	HV532 17 91-14 Out of stock	Pulley	£36.18 £30.15
48	HV532 15 44-07 Out of stock	Guide	£6.78 £5.65
49	HV532 12 32-05 Out of stock	Belt Guide	£5.66 £4.72
51	HV596 32 26-01 Out of stock	Nut	£3.14 £2.62
55	HV532 10 57-09 Out of stock	Spring	£15.65 £13.04
56	HV817 06 06-20 Out of stock	Screw	£5.36 £4.47
57	HV532 14 02-94 Out of stock	Belt	£48.00 £40.00
59	HV532 16 96-91 Out of stock	Belt Guide	£5.78 £4.82
65	HV810 04 07-00 Out of stock	Washer	£3.20 £2.67
66	HV531 15 10-01 Out of stock	Tensioner	£11.92 £9.93
71	HV532 16 91-83 Out of stock	Rod	£23.21 £19.34
74	HV532 13 70-57 Out of stock	Spacer	£7.73 £6.44
75	HV532 12 17-49 Out of stock	Washer	£2.78 £2.32
76	HV812 00 00-01 Out of stock	Retainer Ring	£0.60 £0.50
77	HV532 12 35-83 Out of stock	Key	£6.16 £5.13
78	HV532 12 17-48 Out of stock	Washer	£4.90 £4.08
82	HV532 16 57-11 Out of stock	Spring	£3.91 £3.26
95	HV532 17 02-01 Out of stock	Control	£14.70 £12.25
156	HV532 16 60-02 Out of stock	Washer	£4.06 £3.38
158	HV532 16 55-89 Out of stock	Bracket	£8.59 £7.16
162	HV873 68 04-00 Out of stock	Nut	£1.63 £1.36
163	HV874 78 04-16 Out of stock	Bolt	£3.41 £2.84
168	HV532 16 54-92 Out of stock	Bolt	£4.09 £3.41
197	HV532 16 96-13 Out of stock	Sleeve	£4.60 £3.83
198	HV532 16 95-93 Out of stock	Washer	£1.93 £1.61
199	HV532 16 96-12 Out of stock	Screw	£4.98 £4.15
200	HV872 14 05-08 Out of stock	Bolt	£3.65 £3.04
202	HV872 11 06-14 Out of stock	Bolt	£5.65 £4.71
