Husqvarna Lt152

Model Year -

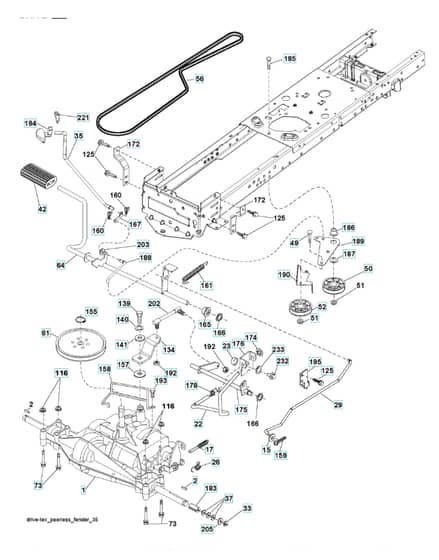

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 12 35-83 Out of stock	Key	£6.16 £5.13
17	HV532 19 72-97 Out of stock	Spring	£10.08 £8.40
22	HV532 19 76-60 Out of stock	Rod	£49.21 £41.01
23	HV532 12 12-74 Out of stock	Knob	£8.95 £7.46
26	HV532 19 74-55 Out of stock	Spring	£3.92 £3.27
29	HV532 19 72-67 Out of stock	Rod	£22.28 £18.57
33	HV812 00 00-01 Out of stock	Retainer Ring	£0.60 £0.50
35	HV532 40 10-31 Out of stock	Rod	£10.43 £8.69
37	HV532 12 17-49 Out of stock	Washer	£2.78 £2.32
49	HV872 11 06-14 Out of stock	Bolt	£5.65 £4.71
50	HV532 19 43-27 Out of stock	Pulley	£35.15 £29.29
52	HV532 19 43-26 Out of stock	Pulley	£34.79 £28.99
56	HV532 19 43-46 Out of stock	Belt	£50.68 £42.23
61	HV532 12 36-66 Out of stock	Pulley	£75.65 £63.04
64	HV532 19 62-00 Out of stock	Shaft	£85.86 £71.55
73	HV874 49 05-40 Out of stock	Bolt	£5.53 £4.61
116	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
134	HV532 19 78-57 Out of stock	Rod	£12.62 £10.52
140	HV596 02 98-01 Out of stock	Washer	£2.44 £2.03
155	HV812 00 00-28 Out of stock	Clip	£0.54 £0.45
160	HV532 16 94-84 Out of stock	Pin	£3.89 £3.24
161	HV532 10 57-09 Out of stock	Spring	£15.65 £13.04
165	HV532 19 62-12 Out of stock	Bushing	£8.36 £6.97
166	HV532 42 91-64 Out of stock	Nut	£1.42 £1.18
167	HV532 40 52-57 Out of stock	Latch	£4.74 £3.95
174	HV532 19 72-89 Out of stock	Nut	£1.63 £1.36
183	HV532 13 70-57 Out of stock	Spacer	£7.73 £6.44
184	HV532 44 14-07 Out of stock	Brake	£11.20 £9.33
185	HV872 11 06-22 Out of stock	Bolt	£7.48 £6.23
186	HV532 19 43-21 Out of stock	Spacer	£11.27 £9.39
188	HV532 19 43-23 Out of stock	Link	£7.91 £6.59
189	HV532 19 43-17 Out of stock	Plate	£12.12 £10.10
202	HV532 19 78-59 Out of stock	Link	£9.54 £7.95
205	HV532 12 17-48 Out of stock	Washer	£4.90 £4.08
221	HV532 40 31-87 Out of stock	Spring	£3.14 £2.62
