Husqvarna Lrh130 - Mower Deck & Cutting Deck

Description

Husqvarna Lrh130

Model Year - 2003-01

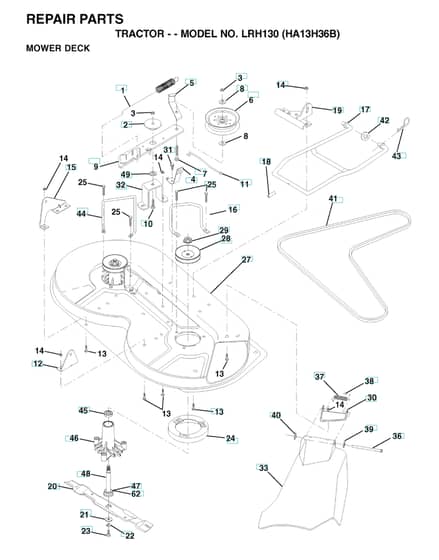

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 15 68-66 Out of stock	Housing	£847.10 £705.92
1	HV532 14 00-64 Out of stock	Spring	£16.54 £13.78
1	HV532 13 07-94 Out of stock	Mandrel	£135.53 £112.94
2	HV532 16 57-23 Out of stock	Spacer	£9.58 £7.98
3	HV596 32 26-01 Out of stock	Nut	£3.14 £2.62
4	HV531 16 51-01 Out of stock	Brake Lever	£9.68 £8.07
6	HV532 12 13-16 Out of stock	Pulley	£69.36 £57.80
7	HV872 11 06-16 Out of stock	Bolt	£5.75 £4.79
11	HV532 13 08-41 Out of stock	Arm	£8.06 £6.72
12	HV532 12 73-56 Out of stock	Bracket	£5.36 £4.47
13	HV872 14 05-06 Out of stock	Bolt	£4.20 £3.50
16	HV532 15 32-98 In stock	Holder	Was £17.83 £14.86 Special Price £4.79 £3.99
20	HV532 13 84-96 Out of stock	Ride On Blade	£24.47 £20.39
21	HV532 14 02-96 Out of stock	Washer	£7.86 £6.55
23	HV532 85 08-57 Out of stock	Bolt	£6.12 £5.10
30	HV532 13 66-31 Out of stock	Bracket	£11.86 £9.88
31	HV817 49 05-08 Out of stock	Screw	£2.96 £2.47
32	HV532 12 20-51 Out of stock	Holder	£8.05 £6.71
37	HV532 12 37-13 Out of stock	Spring	£9.56 £7.97
38	HV532 10 53-04 Out of stock	Hub Cap	£2.87 £2.39
40	HV532 11 04-52 Out of stock	Nut	£1.64 £1.37
41	HV532 13 12-64 Out of stock	Belt	£46.87 £39.06
44	HV532 14 06-08 Out of stock	Holder	£14.88 £12.40
45	HV532 11 04-85 Out of stock	Bearing	£7.69 £6.41
46	HV532 12 87-74 Out of stock	Bearing Housing	£62.72 £52.27
47	HV532 12 98-95 Out of stock	Bearing	£7.38 £6.15
62	HV532 15 33-90 Out of stock	Gasket	£3.77 £3.14
